WC67K 100T/2500 TP10S CNC Hydraulic Press Brake
WC67K 100T 2500 CNC hydraulic press brake with 1000 kN nominal force, 2500 mm working length, TP10S touchscreen control, X/Y servo positioning, 600 mm backgauge travel, segmented punch quick clamps and a multi-V lower die for repeatable sheet-metal bending.

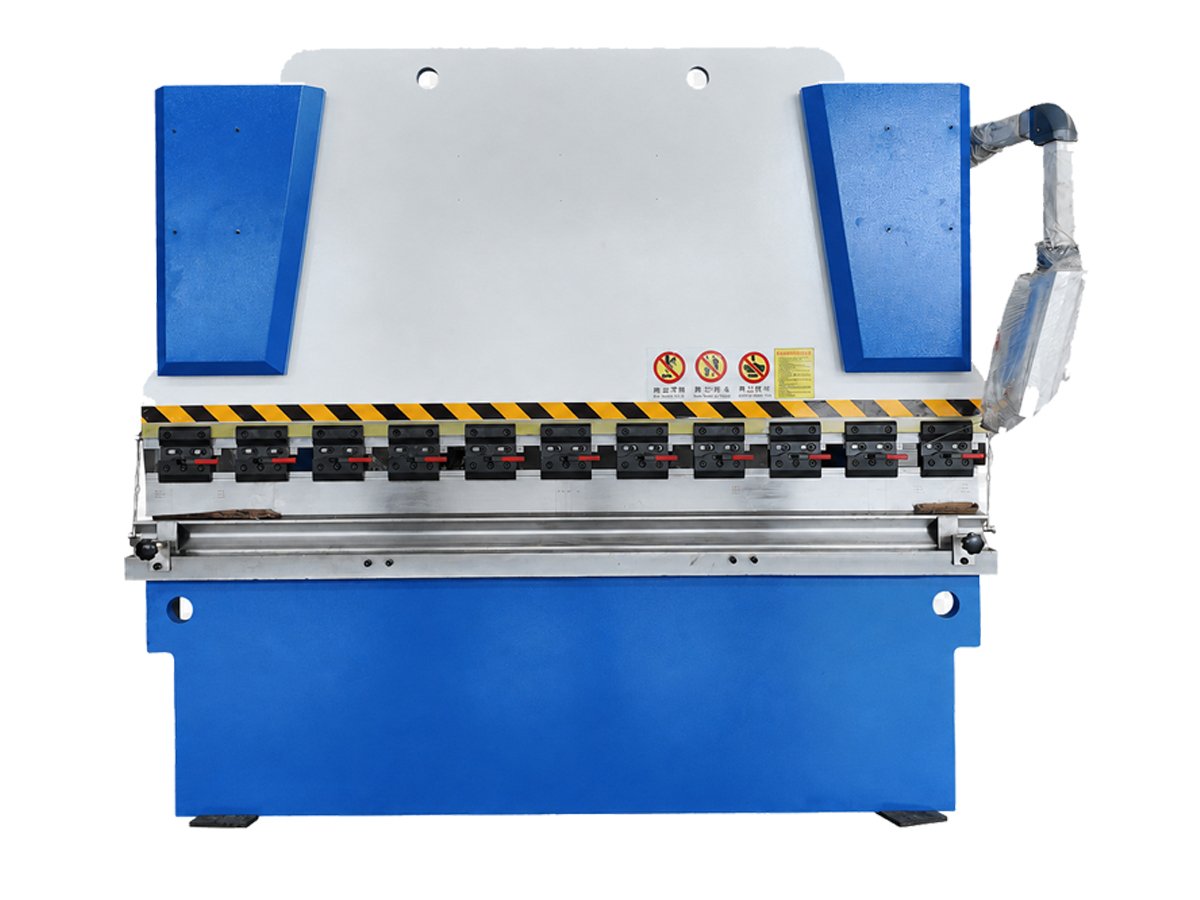

Practical 100 Ton CNC Hydraulic Press Brake for Repeatable Production
The WC67K 100T 2500 CNC hydraulic press brake is a torsion-bar synchronized sheet-metal bending machine developed for workshops that need dependable hydraulic operation, straightforward TP10S programming and repeatable backgauge positioning.
Its 1000 kN nominal force and 2500 mm worktable support metal enclosures, electrical cabinets, HVAC components, machinery panels, stainless-steel parts and general fabricated products when the required tonnage is within the verified capacity.
The TP10S touchscreen controls the X-axis backgauge position and Y-axis ram depth. Operators can store multi-step programs, enter target bend data and repeat common jobs with less manual adjustment.
- TP10S touchscreen with X/Y servo positioning
- 2020 mm distance between columns
- 320 mm throat depth and 120 mm ram stroke
- Segmented upper punch with quick clamping
- Multi-V lower die for flexible tooling selection
- Ball-screw backgauge with 600 mm travel
Choose by Material, Bend Length and Tooling—not Tonnage Alone
A “100 ton press brake” rating does not guarantee one universal sheet thickness. Correct selection requires the material strength, actual bend length, V-die opening, angle, inside radius and smallest flange.
Can It Bend My Part?
Send the material grade, thickness, maximum bend length and drawing. We calculate the required force before confirming the machine.
Will Batch Parts Repeat?
Servo X/Y positioning, the ball-screw backgauge and stored programs support consistent dimensions after first-piece correction.
How Fast Is Tool Change?
Segmented tooling, quick clamps and a multi-V die reduce setup time for workshops handling mixed jobs.
Efficient Two-Axis CNC Bending for Job Shops and Batch Work
The configuration focuses on useful daily production: easy programming, stable positioning, flexible tooling and serviceable hydraulic and electrical assemblies.
TP10S Touchscreen
Menu-based programming supports bend-angle data, X/Y positioning, stored programs and multi-step bending sequences.
X/Y Servo Control
Servo-controlled backgauge and ram-depth positioning reduce repeated manual setup for common workpieces.
Rigid Welded Frame
The steel frame is designed to provide the rigidity required for stable hydraulic bending and long-term production.
Quick-Clamped Tooling
Segmented upper tooling and quick clamps shorten punch replacement and simplify different bending setups.
Multi-V Lower Die
Multiple V openings help operators match tooling to different plate thicknesses and bending requirements.
Precision Backgauge
Ball screw, linear guide and servo drive provide practical positioning accuracy for repeated flange dimensions.
WC67K-100T/2500 CNC Hydraulic Press Brake Parameters
The following values are based on the corrected WC67K-100/2500 technical document. Final dimensions, speed, accuracy, components and optional safety systems are subject to the confirmed technical proposal.
| Technical Item | Unit | WC67K-100T/2500 |
|---|---|---|
| Machine type | — | Torsion-bar synchronized CNC hydraulic press brake |
| Nominal bending force | kN / ton | 1000 / 100 |
| Worktable / bending length | mm | 2500 |
| Distance between columns | mm | 2020 |
| Throat depth | mm | 320 |
| Ram stroke | mm | 120 |
| Maximum opening height | mm | 320 |
| Backgauge travel | mm | 600 |
| Controlled axes | — | X-axis backgauge / Y-axis ram depth |
| Controller | — | TP10S touchscreen |
| Reference X-axis positioning accuracy | mm | Approx. 0.05–0.10; confirm final configuration |
| Main motor power | kW | 7.5 |
| Reference power supply | — | 380 V / 50 Hz / 3 phase, ±10% |
| Operating environment | — | 0–40°C; 20–80% RH |
Tooling, Frame, Electrical Cabinet and Stroke Detection
Detailed product images help buyers evaluate setup convenience, tooling format, structural access and ram-position detection before ordering.

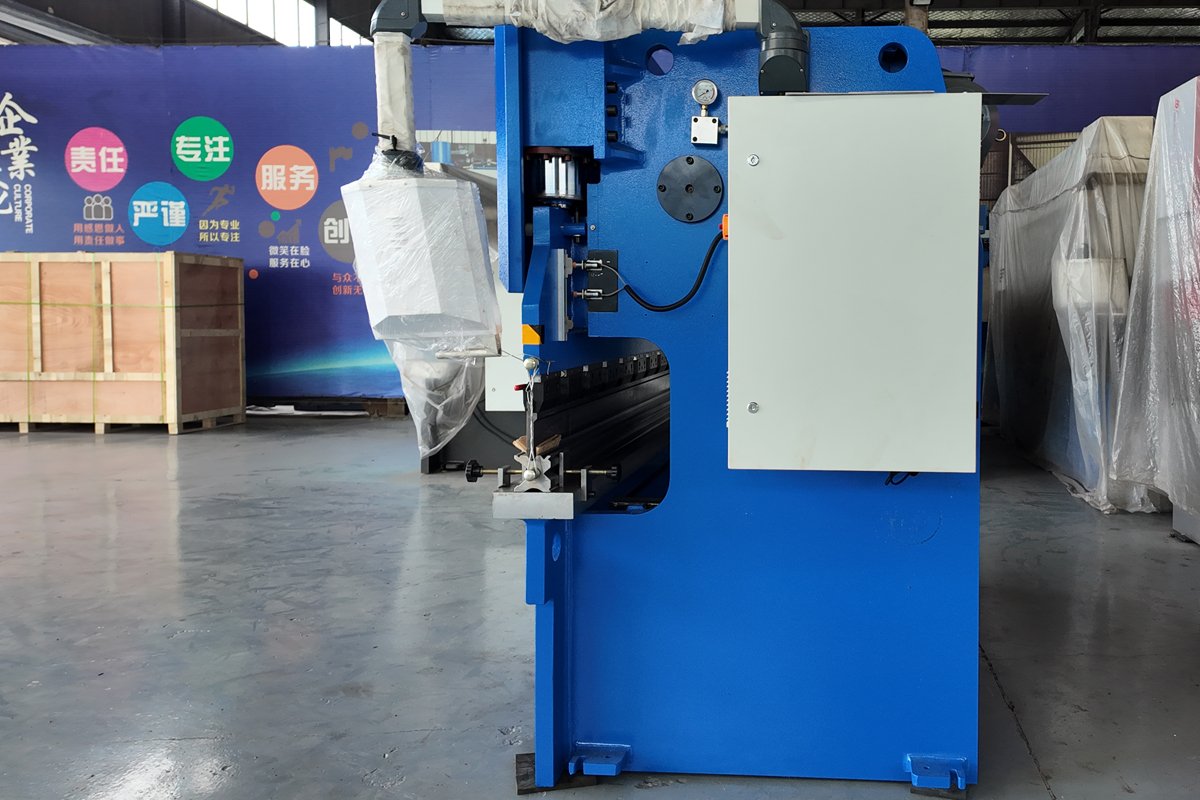

Side Frame and Electrical Cabinet
Side detail showing the welded machine frame and integrated electrical cabinet used for hydraulic bending control.

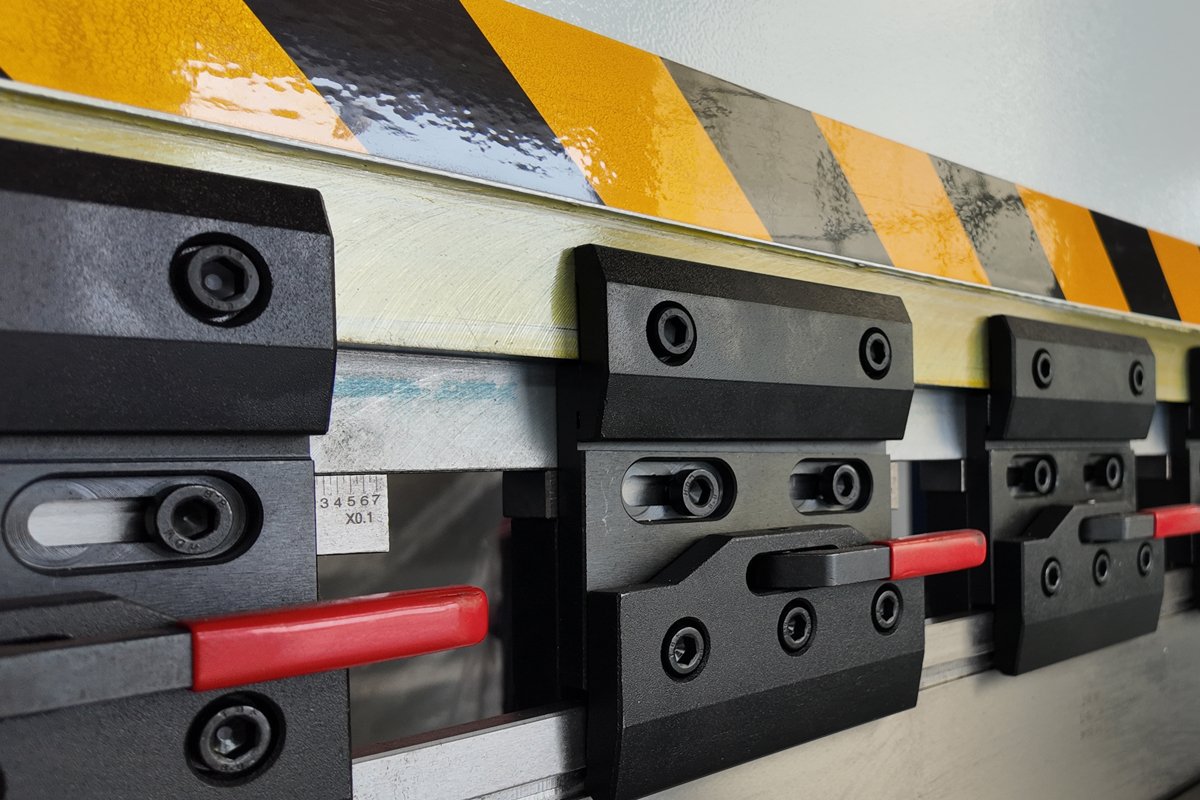

Segmented Punch Quick Clamps
Segmented upper tooling and quick clamps help reduce punch setup and changeover time.

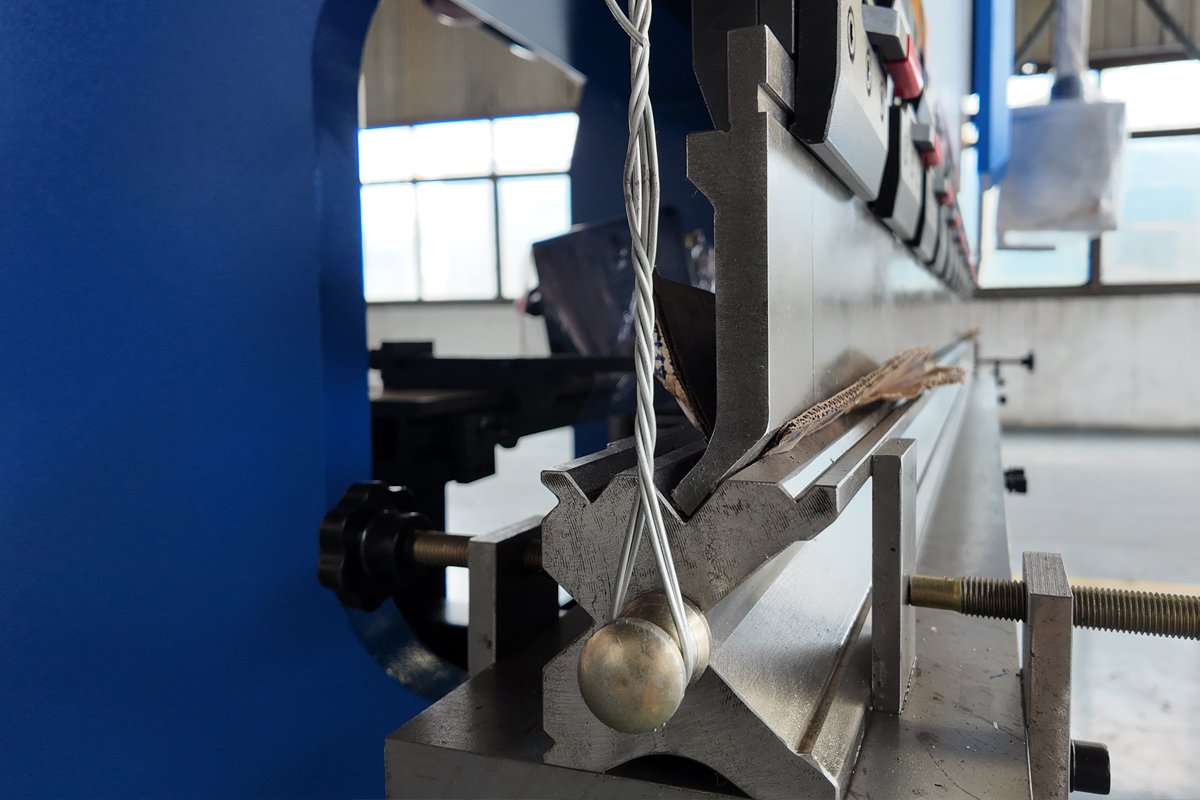

Upper Punch and Multi-V Lower Die
Side detail of the standard upper punch and multi-V lower die for different sheet-metal bending requirements.

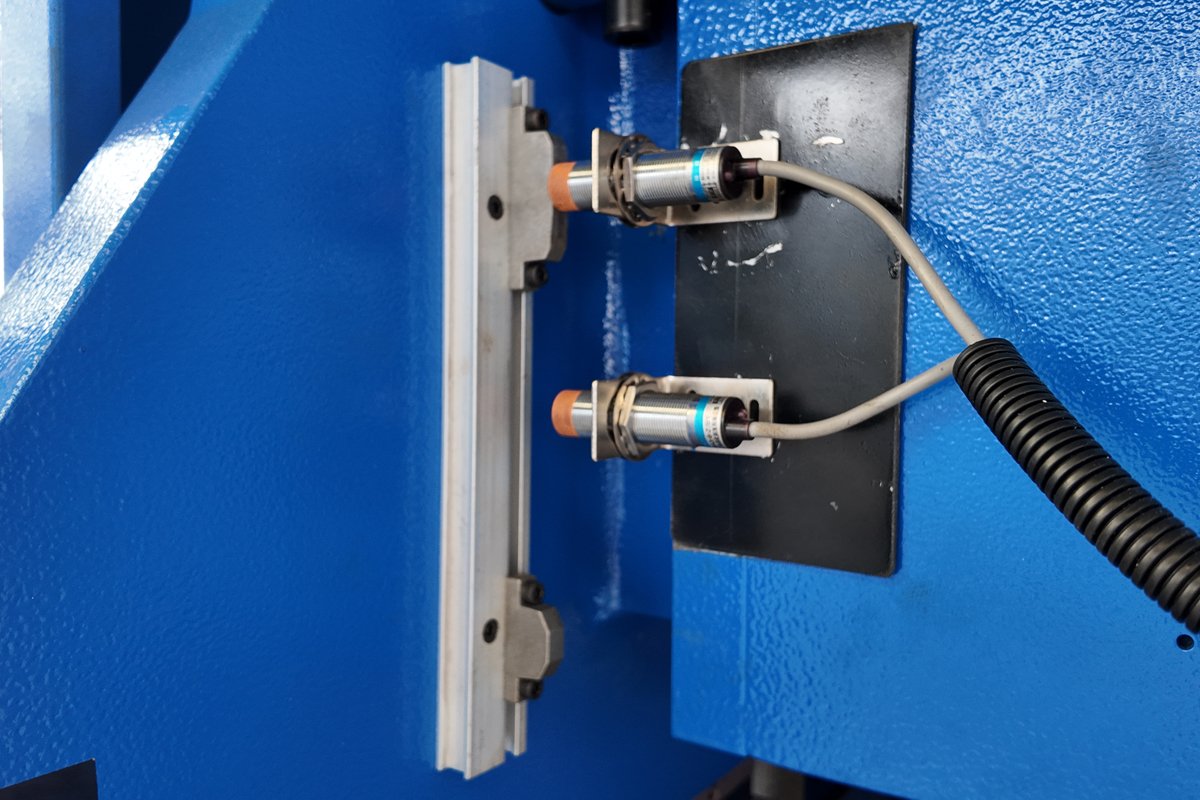

Ram Stroke Detection Sensor
Proximity sensor used in ram stroke detection and bending-cycle position control.
TP10S Programming with Industrial Hydraulic Components
The TP10S system provides a 10-inch touchscreen, menu-based programming, bend-angle input, X/Y dual-axis servo control, single-step and multi-step operation, program storage and diagnostic functions.
The reference machine configuration combines hydraulic cylinders, pump, valves, seals, main electrical devices and a ball-screw backgauge selected for stable operation and service access.
Brand and component configuration must be confirmed in the final proposal because supply, voltage, safety requirements and customization may change the delivered specification.
Sheet-Metal Bending for Enclosures, HVAC and Fabrication
The WC67K 100T 2500 CNC hydraulic press brake supports single parts and repeated production batches for electrical cabinets, HVAC components, machinery panels, stainless-steel parts and general metal fabrication.
Electrical Cabinets
Enclosure panels, doors, boxes and repeated flanges.
HVAC Fabrication
Duct parts, channels, covers and ventilation components.
Machine Guards
Protective covers, panels and fabricated machinery parts.
Metal Furniture
Shelving, cabinets, frames and formed structural sections.
Stainless Steel
Parts processed after recalculating grade, strength and length.
General Job Shops
Flexible mixed production with quick tooling setup.
Automotive Parts
Brackets, supports and medium-format formed components.
Custom Fabrication
Drawing-based parts with verified tooling and bend sequence.
Information Required Before Recommending a Press Brake
Complete project information prevents undersizing, unsuitable tooling and unrealistic thickness claims.
- Material type and exact grade
- Material tensile or yield strength
- Minimum and maximum thickness
- Maximum actual bending length
- Required angle and inside radius
- Smallest flange dimension
- Workpiece drawing or DXF/PDF
- Daily production quantity
- Required upper and lower tooling
- Destination voltage and frequency
- Safety protection requirements
- Installation and training requirements
Compare Press Brakes and Verify Your Bending Project
Use the related pages to compare machine types, review factory capability and prepare the information needed for a verified quotation.
For general machine-safeguarding information, review the OSHA Machine Guarding guidance . Final equipment must meet the buyer’s applicable local regulations.
WC67K-100T/2500 CNC Press Brake FAQ
Clear answers about capacity, TP10S control, tooling, repeatability and quotation data.
What is the capacity of the WC67K-100T/2500?
Which axes does the TP10S control?
What is the distance between columns?
How far can the backgauge travel?
Does the machine include quick clamping?
Can this 100 ton press brake bend stainless steel?
How is bending repeatability improved?
Why is there no universal maximum-thickness claim?
What information is required for a quotation?
Can the voltage, tooling and safety system be customized?
Need a 100 Ton Press Brake for 2500 mm Workpieces?
Send your material grade, thickness, maximum bending length, angle, radius and drawing. We will verify tonnage, V-die opening, tooling and controller configuration before preparing a quotation.
