WE67K CNC Press Brake 125T/3200 Hydraulic Bending Machine
WE67K CNC Press Brake is a professional electro-hydraulic synchronized press brake designed for high precision sheet metal bending. With 125 ton bending force and 3200mm working length, it provides stable performance for industrial metal fabrication.
Request A QuoteAdvanced Performance of WE67K CNC Press Brake
The WE67K CNC Press Brake is designed for manufacturers who require accurate bending performance, stable operation and efficient sheet metal production. The machine combines CNC control technology, hydraulic synchronization and mechanical rigidity to achieve reliable results in daily industrial applications.
With a 125 ton bending force and 3200mm working length, this CNC hydraulic press brake provides a practical solution for medium-size metal fabrication projects. It can process different sheet materials according to thickness, strength and tooling requirements, including carbon steel, stainless steel and other industrial metal plates.
The CNC system allows operators to create bending programs easily and improve production efficiency. The combination of DELEM DA53T controller, precision back gauge and hydraulic control system helps reduce manual adjustment time and improves repeatability during continuous production.
Industrial Applications of WE67K CNC Press Brake
The WE67K CNC Press Brake is widely used in sheet metal fabrication factories, electrical cabinet manufacturing, machinery production, steel structure processing and customized metal component manufacturing. Its flexible configuration makes it suitable for customers who need reliable CNC bending equipment for different production requirements.
Hong Forging Machinery provides professional CNC press brake solutions with technical support, customized configuration options and complete machine service. Customers can choose suitable tooling, electrical standards and machine options according to their production environment.
WE67K CNC Press Brake Overview
The WE67K CNC Press Brake manufactured by Hong Forging Machinery combines advanced CNC control technology, hydraulic synchronization and rigid machine structure to deliver accurate bending performance.
This 125T/3200 CNC hydraulic press brake uses electro-hydraulic servo synchronization technology with closed-loop control. The CNC system receives feedback from precision linear scales and controls Y1 and Y2 cylinders independently, ensuring stable ram movement and consistent bending angles.
The machine is suitable for sheet metal fabrication, electrical cabinets, automotive parts, steel structures, industrial equipment and customized metal components.
Industrial Control System and Components
The WE67K CNC Press Brake uses advanced CNC control technology and reliable industrial components to achieve accurate sheet metal bending performance. Customers can learn more about professional CNC control solutions from DELEM CNC control systems for advanced bending machine applications.
Main Features of WE67K CNC Press Brake
125 Ton Powerful Bending Capacity
1250KN nominal pressure provides reliable bending force for medium thickness metal sheet processing.
DELEM DA53T CNC Control
Equipped with DELEM DA53T controller featuring touchscreen operation, CNC programming and professional press brake control functions.
3200mm Working Length
3200mm bending length supports various industrial sheet metal fabrication applications.
REXROTH Hydraulic System
Professional hydraulic valve group improves stability, reduces leakage risk and extends machine service life.
Automatic Crowning Compensation
CNC controlled compensation system improves bending consistency across the complete working length.
Precision Back Gauge System
X axis CNC back gauge with linear guide and ball screw provides accurate positioning.
Technical Specifications
| Model | WE67K-125T/3200 |
| Machine Type | CNC Hydraulic Press Brake |
| Bending Force | 1250KN / 125 Ton |
| Working Length | 3200mm |
| CNC Controller | DELEM DA53T |
| Control Axis | Y1 Y2 X V |
| Position Accuracy | ±0.05mm |
| Repeat Accuracy | ±0.02mm |
| Hydraulic System | REXROTH |
| Main Motor | 7.5KW |

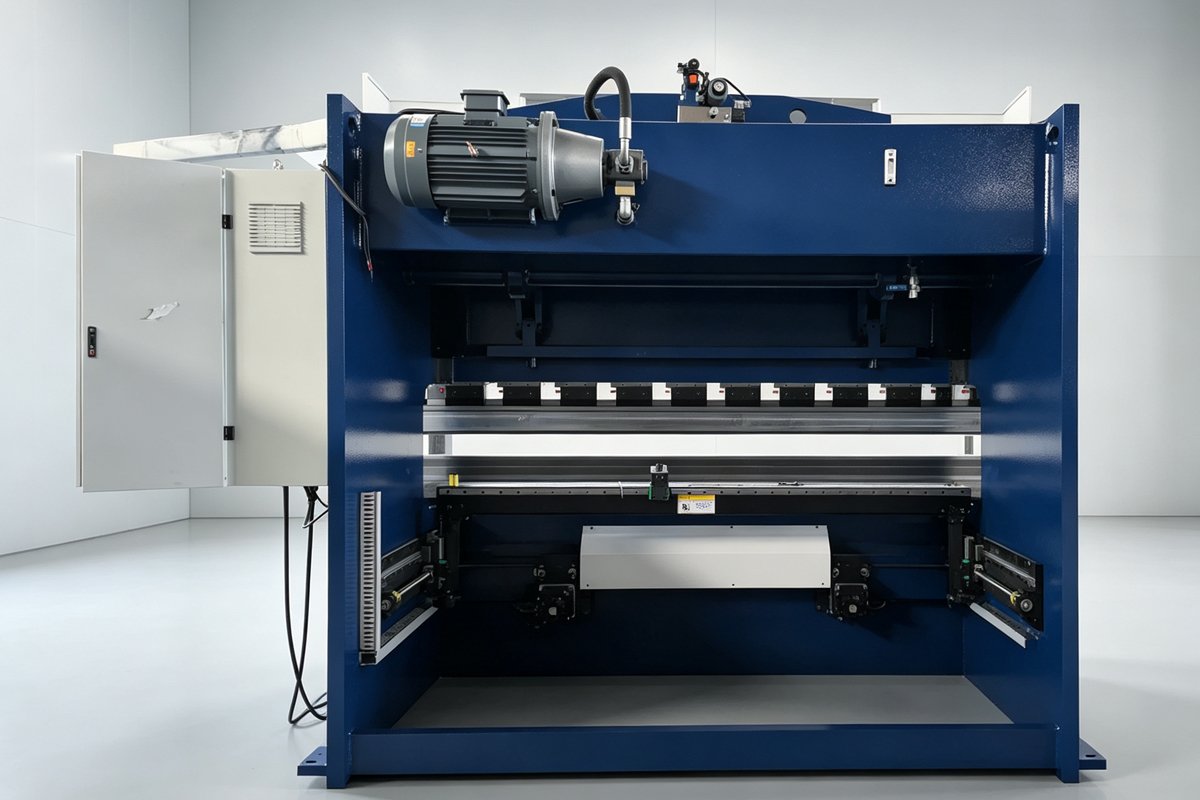

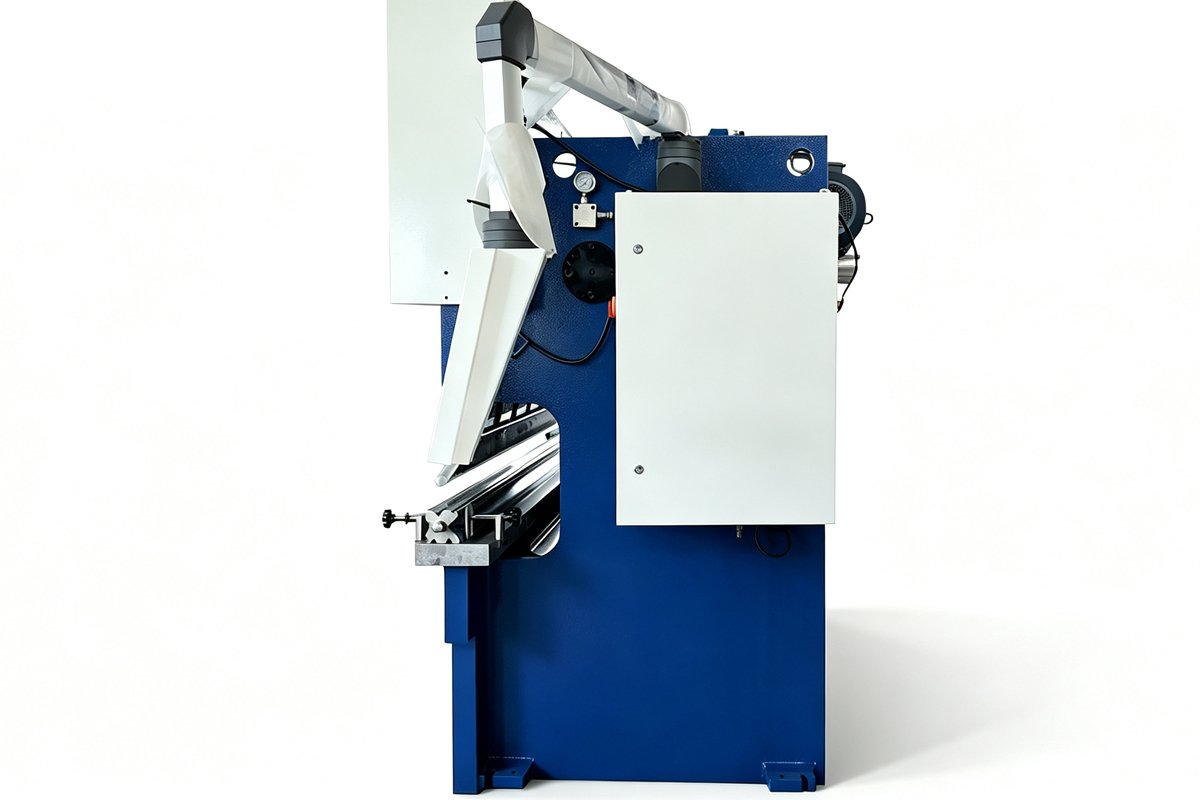

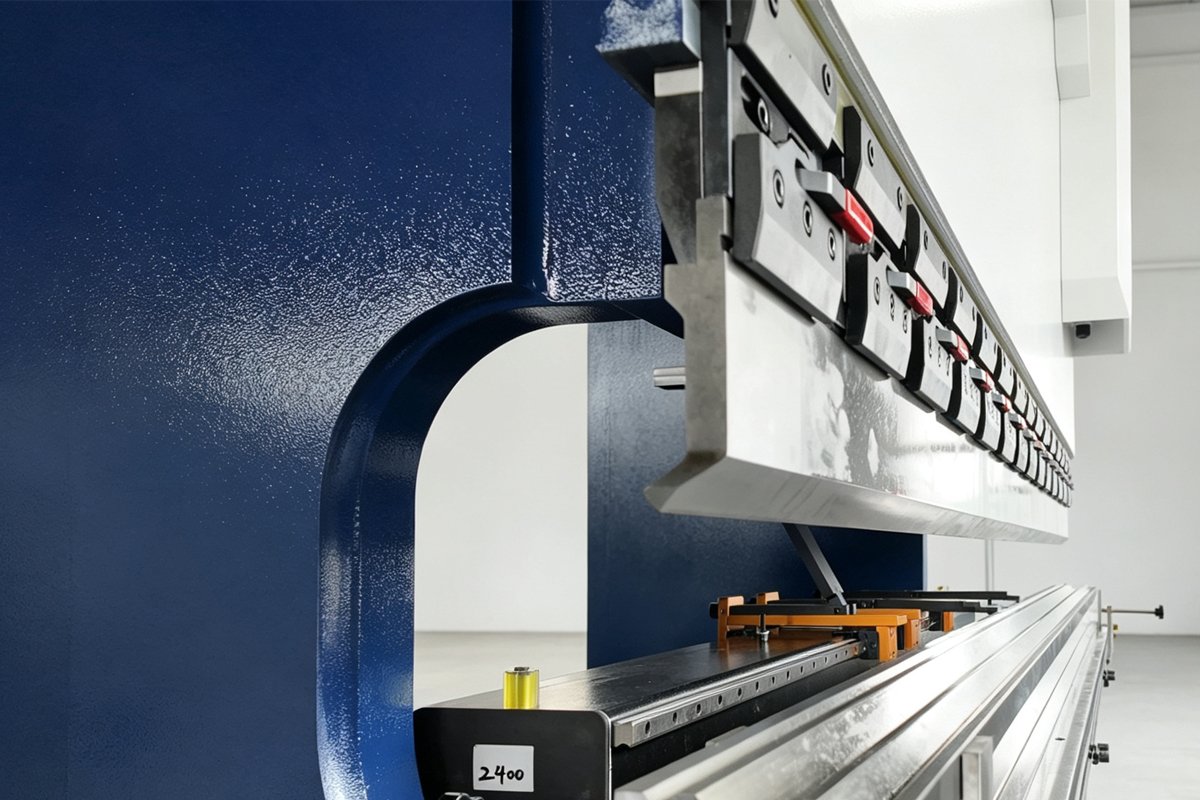

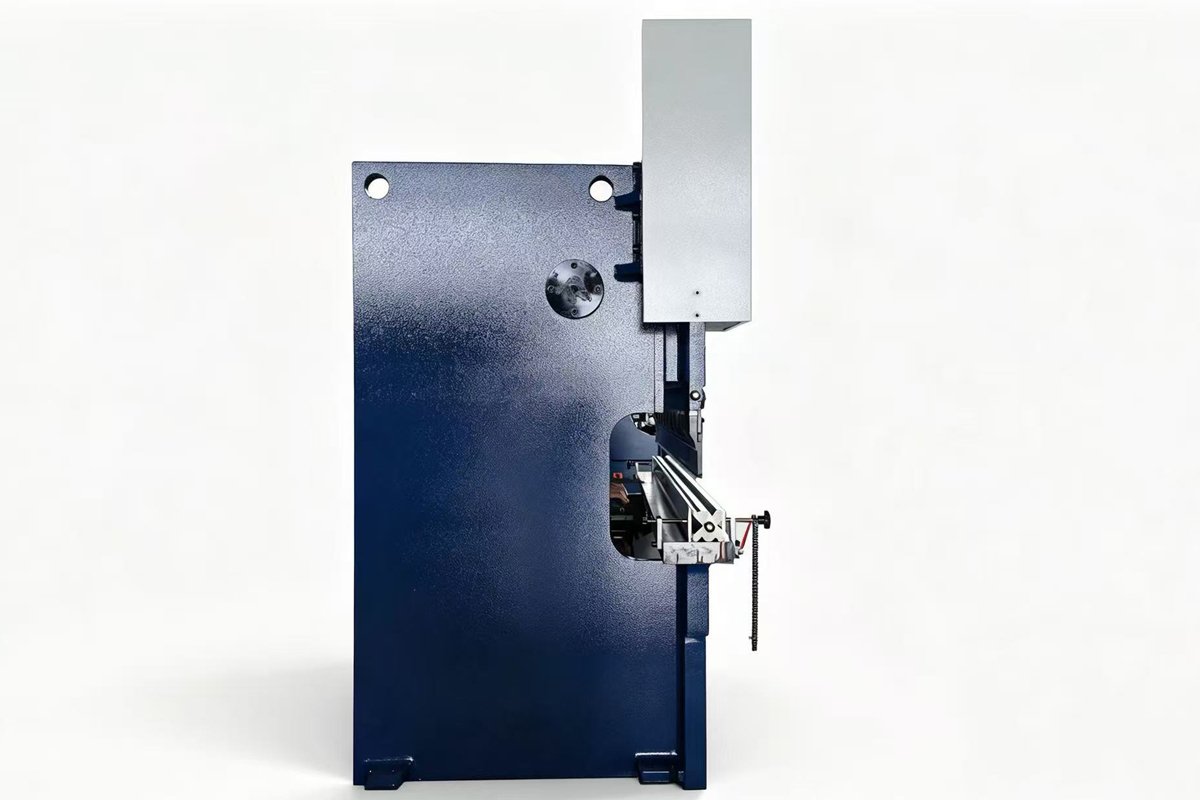

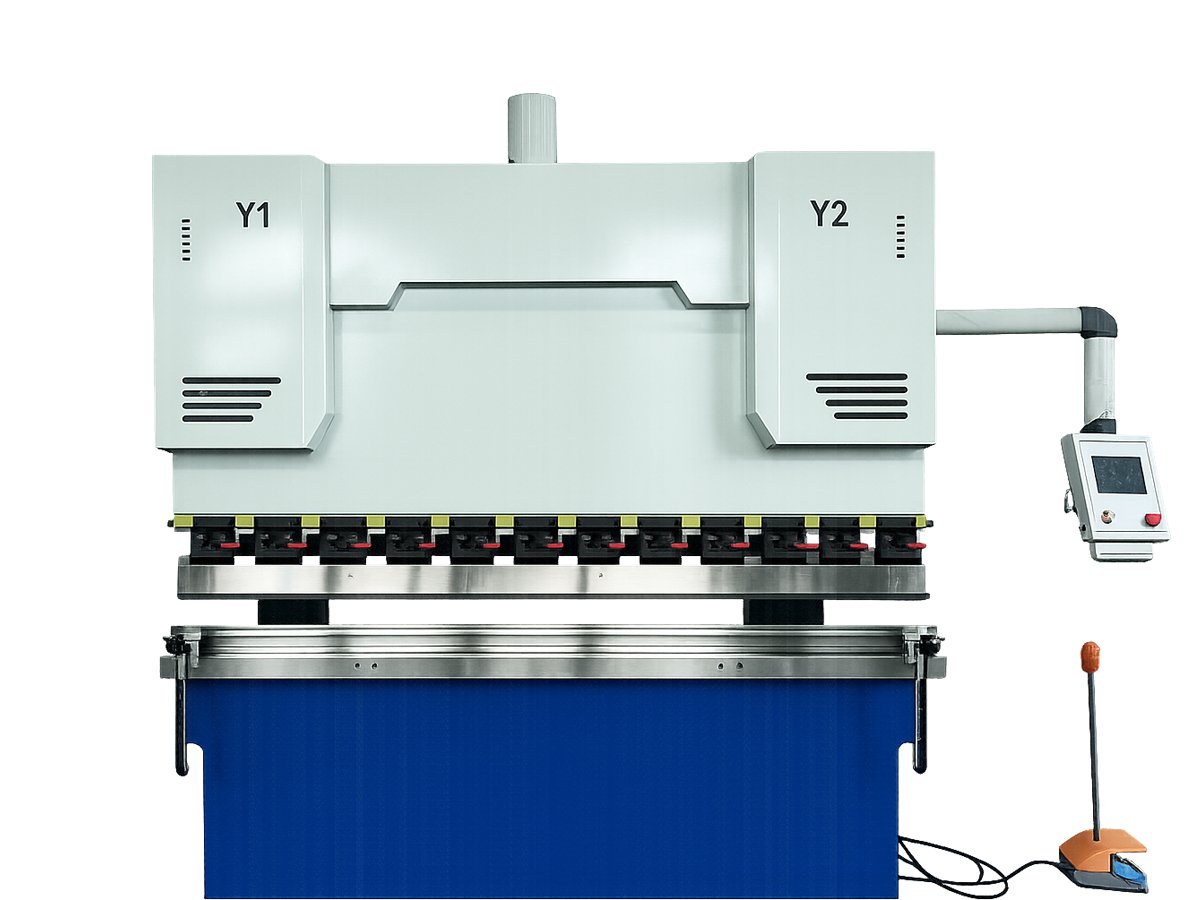

Machine Gallery
Applications
- Sheet metal fabrication
- Electrical cabinet production
- Automotive components
- Steel structure manufacturing
- Industrial equipment production
Why Choose Hong Forging WE67K CNC Press Brake?
Hong Forging Machinery specializes in CNC press brake manufacturing and provides reliable metal forming solutions for global customers.
The WE67K CNC Press Brake combines precision CNC technology, high quality hydraulic components and strong welded construction to achieve long-term industrial operation.
Customers can customize tooling, CNC configuration, electrical standards and machine accessories according to production requirements.
Frequently Asked Questions
What is WE67K CNC Press Brake?
WE67K CNC Press Brake is an electro-hydraulic synchronized CNC bending machine designed for precision sheet metal processing.
What is the capacity of this machine?
This model provides 125 ton bending force with 3200mm working length.
Which CNC controller is used?
The machine uses DELEM DA53T CNC controller.
Can this machine be customized?
Yes. Tooling, CNC options and accessories can be customized according to customer requirements.
Get WE67K CNC Press Brake Price Today
Contact Hong Forging Machinery for quotation, technical specifications and customized bending solutions.
