QC12K 10x2500 CNC Shearing Machine
The QC12K 10x2500 CNC Shearing Machine is a hydraulic swing beam sheet metal cutting machine designed for professional fabrication, with up to 10 mm ordinary steel cutting capacity, 2500 mm cutting width, E21S control and servo-driven backgauge positioning.
CNC Hydraulic Swing Beam Shearing Machine for Sheet Metal Cutting
The QC12K 10x2500 CNC Shearing Machine combines hydraulic swing beam cutting with CNC backgauge positioning for professional sheet metal fabrication.
The machine is rated for ordinary steel plate up to 10 mm thickness and stainless steel up to 5 mm, with a maximum cutting width of 2500 mm.
Its welded steel machine frame, hydraulic hold-down system, servo-driven backgauge, worktable support and E21S controller create a practical cutting solution for industrial workshops processing repeated sheet metal parts.
Why Choose the QC12K 10x2500 CNC Shearing Machine?
The QC12K swing beam design combines hydraulic cutting, CNC backgauge adjustment and a rigid welded machine structure for practical industrial sheet metal production.
10 mm Steel Cutting Capacity
The QC12K-10×2500 is rated to cut ordinary steel plate up to 10 mm thickness under the specified material strength conditions.
2500 mm Cutting Width
A maximum cutting width of 2500 mm provides a practical working range for medium-size sheet metal panels, fabricated parts and production blanks.
Servo Backgauge Positioning
The backgauge uses servo motor drive with synchronous belt, ball screw and guide rail transmission for stable positioning and repeated cutting dimensions.
Hydraulic Hold-Down System
Hydraulic hold-down cylinders press the sheet before cutting and return after the shearing cycle to support stable material positioning.
Rigid Welded Machine Frame
The frame uses welded steel construction to provide structural rigidity for repeated industrial sheet metal cutting operations.
E21S CNC Control
E21S control supports practical backgauge management and machine operation for repeatable shearing production.
QC12K-10×2500 Hydraulic Shearing Machine Parameters
The QC12K 10x2500 CNC Shearing Machine is configured for industrial sheet metal cutting with a 2500 mm cutting width and hydraulic swing beam structure.
Actual cutting capability depends on sheet material, tensile strength, blade condition, blade clearance and production requirements.
| Technical Item | Specification |
|---|---|
| Model | QC12K-10×2500 |
| Machine Type | CNC Hydraulic Swing Beam Shearing Machine |
| Maximum Ordinary Steel Thickness | 10 mm |
| Maximum Stainless Steel Thickness | 5 mm |
| Maximum Cutting Width | 2500 mm |
| Rated Sheet Strength | 450 N/mm² |
| Shearing Angle | 1.5° |
| Stroke Frequency | 16 strokes/min |
| Blade Length | 2600 mm |
| Main Motor | 15 kW |
| Backgauge Range | 20–800 mm |
| Backgauge Drive | Servo motor + ball screw + guide rail |
| Control System | E21S |
QC12K 10x2500 CNC Shearing Machine Structure and Components
Detailed images show the rear machine structure, hydraulic piping and servo backgauge drive used within the QC12K hydraulic swing beam shearing system.
Hydraulic System & Piping
Servo Backgauge Drive
20–800 mm Servo Backgauge for Repeatable Cutting
The QC12K 10x2500 CNC Shearing Machine uses a servo-driven rear backgauge to position sheet metal before each cutting cycle.
The backgauge transmission uses a synchronous belt, ball screw and guide rail arrangement, providing an adjustable range from 20 mm to 800 mm.
Practical Front Worktable for Sheet Metal Feeding
The front worktable supports sheet positioning before cutting. Feeding balls on the worktable help reduce resistance while operators position larger metal sheets.
Hydraulic hold-down cylinders press the sheet before cutting to support stable material positioning during the shearing cycle.
How the QC12K Hydraulic Swing Beam Shearing Process Works
The QC12K cutting cycle combines CNC backgauge positioning, hydraulic material hold-down and swing beam blade movement for sheet metal cutting.
1. Enter Cutting Dimension
The operator sets the required backgauge position according to the target sheet metal cutting dimension.
2. Position the Sheet
The plate is moved across the front worktable until it reaches the configured backgauge position.
3. Hydraulic Hold-Down
Hold-down cylinders press the material before the blade completes the shearing stroke.
4. Complete the Cut
The swing beam cutting mechanism performs the shearing cycle and returns for the next sheet or repeated cut.
Hydraulic System for Stable Swing Beam Cutting
The hydraulic circuit supports the cutting cylinders, return system and hydraulic hold-down devices used during machine operation.
Dedicated Hydraulic Circuit
Hydraulic components are arranged to support cutting, return and hold-down functions within the QC12K swing beam shearing cycle.
Hydraulic Hold-Down
Hold-down cylinders secure the sheet before cutting, helping maintain material position during the shearing operation.
Industrial Cutting Operation
The hydraulic system is designed for repeated industrial sheet metal cutting and practical workshop production.
QC12K 10x2500 CNC Shearing Machine Buying Guide
Shearing machine selection should be based on material, maximum thickness, sheet width, required cutting dimensions and production quantity.
Material Type
Tell us whether you cut carbon steel, stainless steel, aluminum or another sheet material because material strength affects required cutting capacity.
Maximum Thickness
Provide the actual maximum sheet thickness rather than only the average production thickness.
Maximum Sheet Width
The QC12K-10×2500 provides a rated cutting width of 2500 mm, so the longest production sheet should be confirmed before ordering.
Required Backgauge Range
Confirm your normal blank dimensions and cutting lengths to determine whether the 20–800 mm rear backgauge range matches production requirements.
Production Volume
Daily cutting quantity helps determine how important CNC positioning, workflow and repeated backgauge settings are for the production process.
Voltage and Destination
Provide destination country, workshop voltage and frequency so the final electrical configuration can be confirmed before production.
Is the QC12K 10x2500 CNC Shearing Machine Right for Your Workshop?
Customers searching for a 10mm hydraulic shearing machine, 2500mm CNC shearing machine, hydraulic swing beam shear or sheet metal cutting machine should compare machines using their actual production material and cutting requirements.
The QC12K 10x2500 CNC Shearing Machine is rated for ordinary steel up to 10 mm and stainless steel up to 5 mm, with a maximum cutting width of 2500 mm. Material strength and actual cutting conditions should still be considered before final selection.
Buyers producing repeated blanks can benefit from the servo-driven CNC backgauge because cutting dimensions can be adjusted through the machine control rather than relying only on manual rear-stop positioning.
Before ordering the QC12K 10x2500 CNC Shearing Machine, send your material type, maximum thickness, maximum sheet width, normal cutting dimensions, production quantity, voltage and destination country for configuration review.
Applications of the QC12K 10x2500 CNC Shearing Machine
The machine is suitable for professional sheet metal fabrication applications requiring straight cutting of steel and other compatible sheet materials.
Sheet Metal Fabrication
Cutting sheet blanks and production parts for general metal fabrication workshops.
Machinery Manufacturing
Suitable for preparing sheet metal components, machinery panels and fabricated equipment parts.
Electrical Cabinets
Can be used to prepare sheet blanks for cabinets, enclosures, panels and control boxes.
Automotive Fabrication
Suitable configuration can support sheet preparation for fabricated automotive and transport components.
Ship & Steel Fabrication
Applicable to compatible sheet cutting jobs used in marine, structural and industrial fabrication.
Custom Metal Production
Production suitability can be evaluated according to customer material, thickness and cutting dimensions.
QC12K 10x2500 CNC Shearing Machine Gallery
View the complete machine, rear structure, hydraulic piping, front worktable and servo backgauge system.

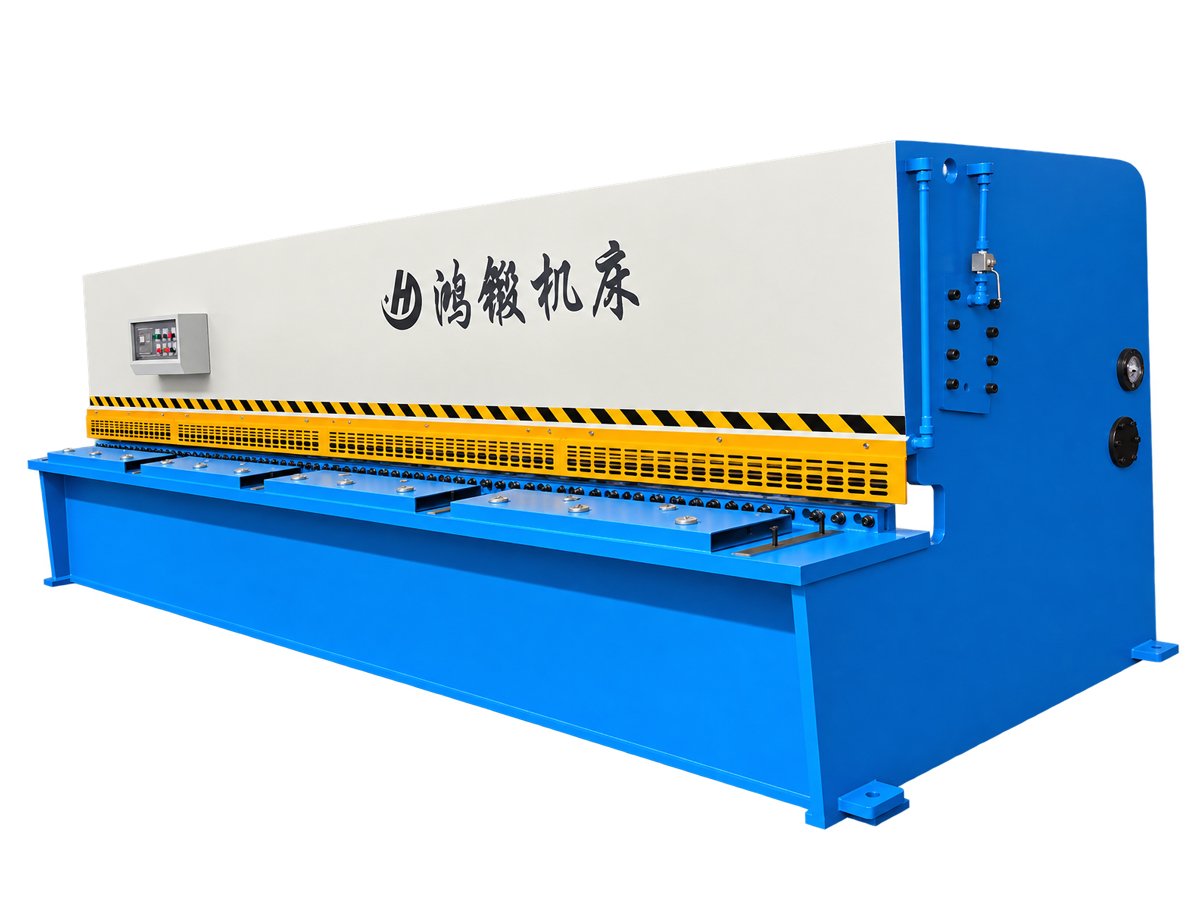

Main Machine
Complete QC12K-10×2500 CNC hydraulic swing beam shearing machine.

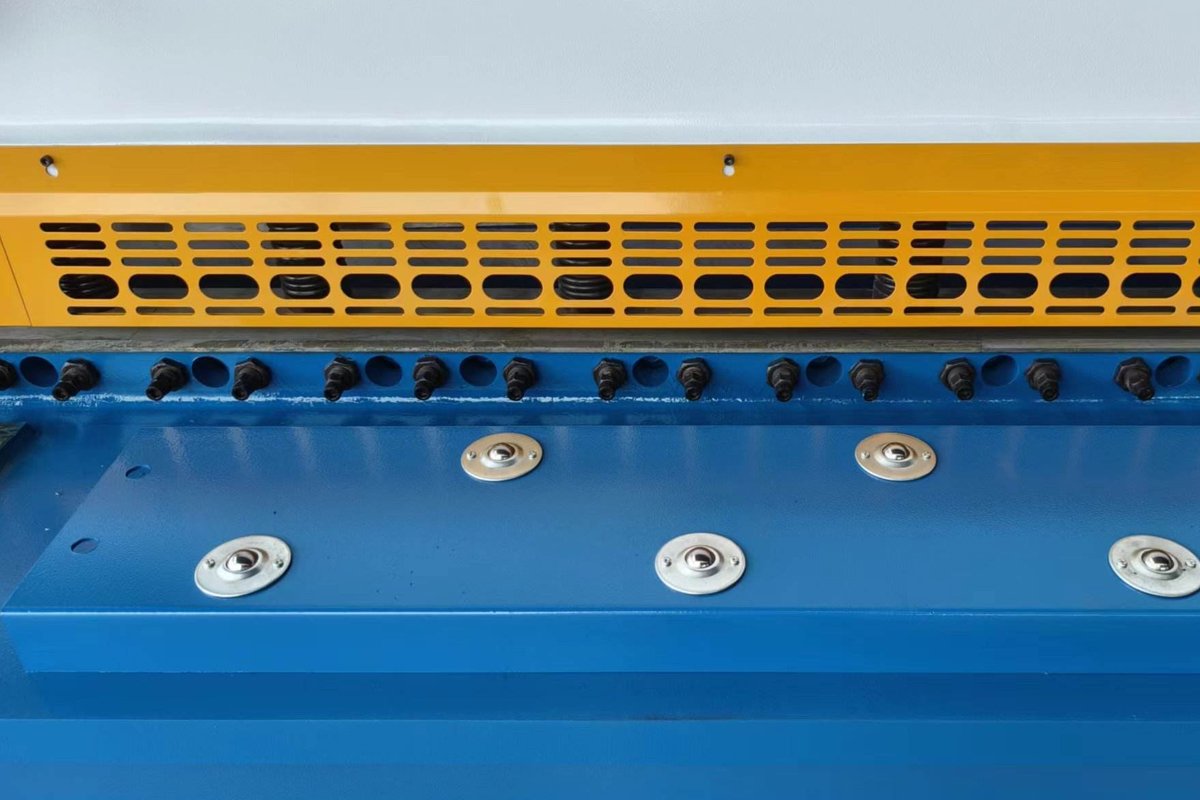

Front Worktable
Sheet feeding and front cutting work area with material support.

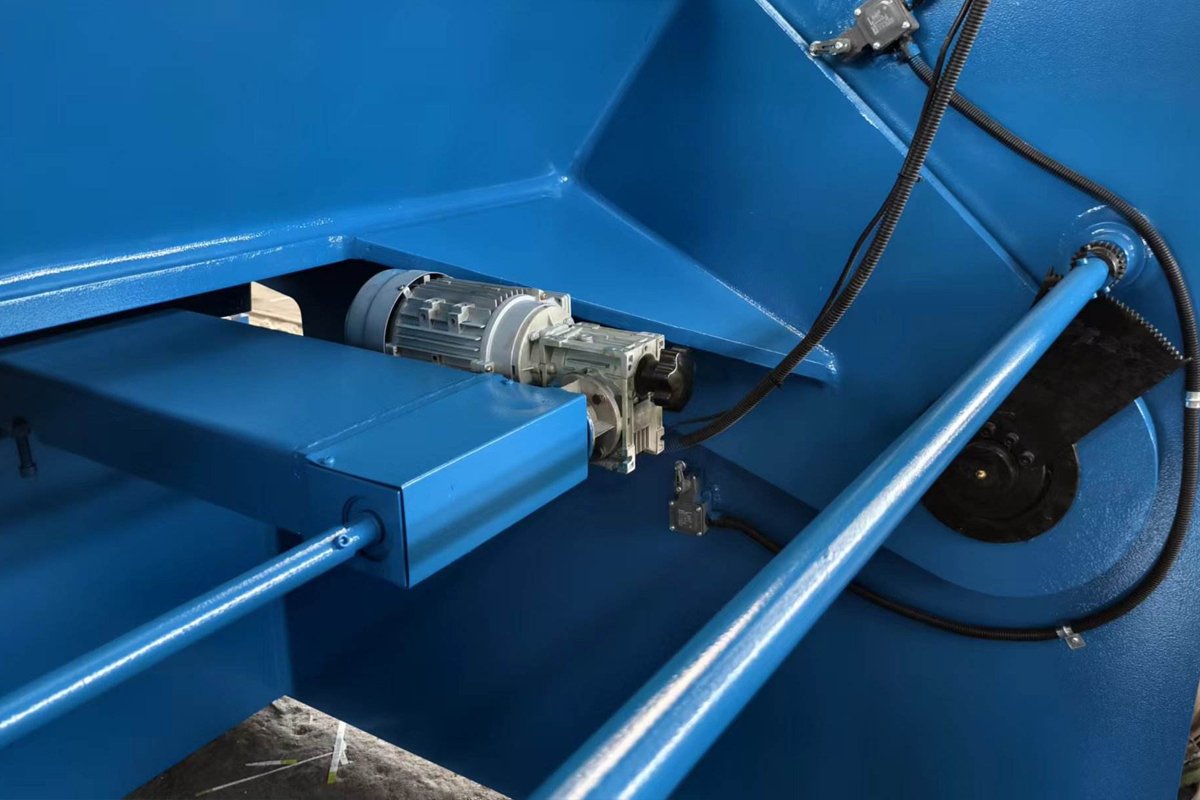

Servo Backgauge
Servo drive, ball screw and guide rail positioning components.

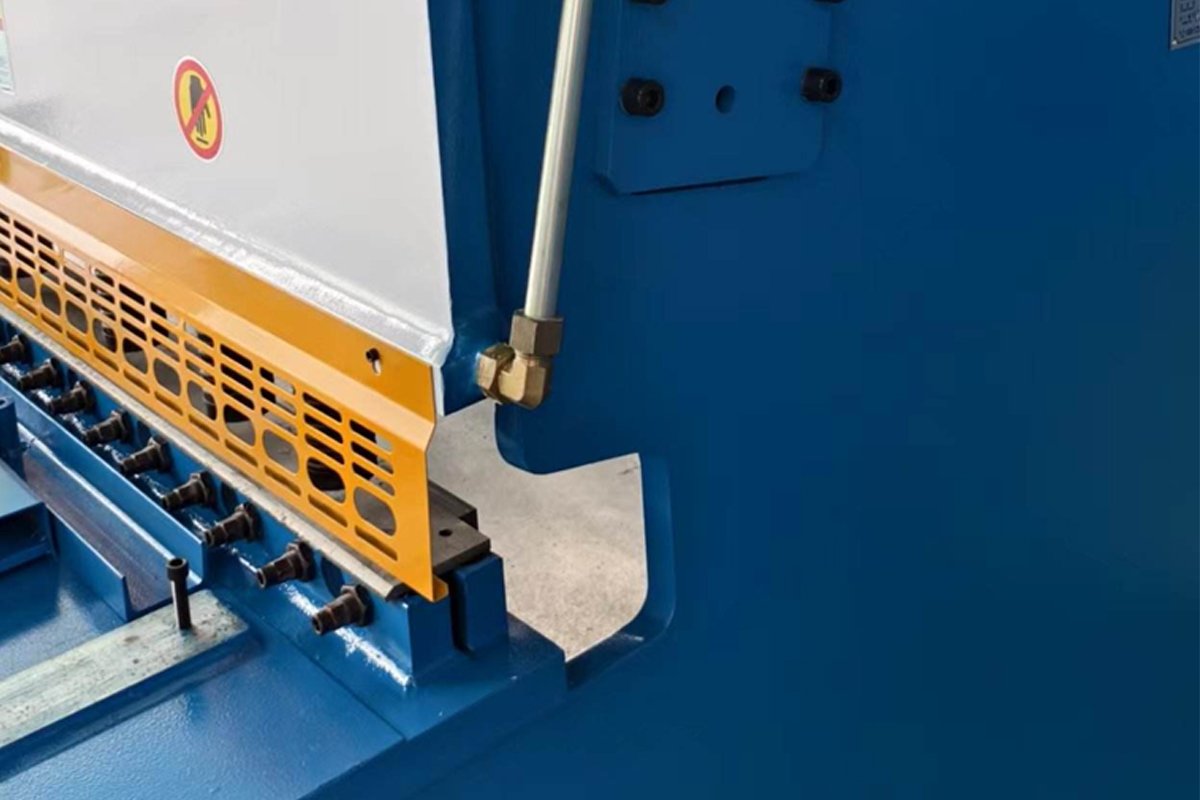

Hydraulic System
Side-frame hydraulic piping and operating system detail.

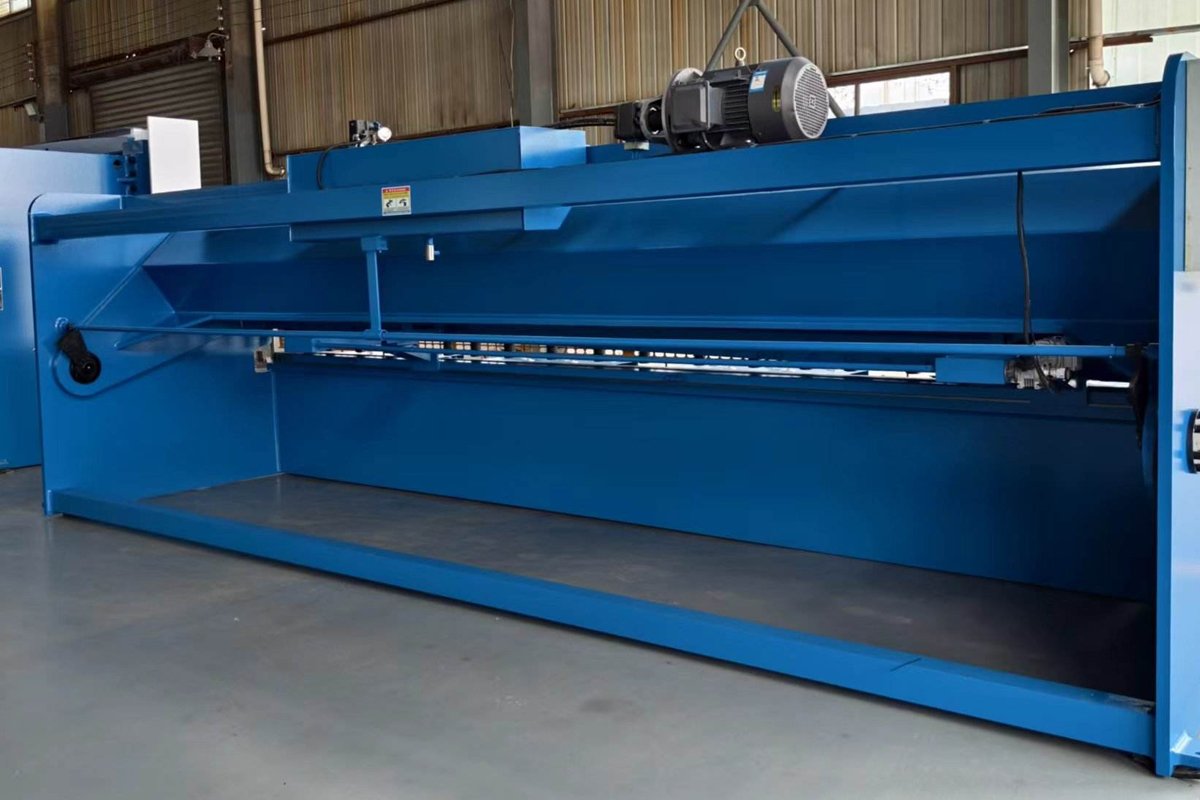

Rear Structure
Rear view showing the machine frame and backgauge area.
10 × 2500 CNC Hydraulic Shear
QC12K CNC sheet metal cutting solution for professional fabrication workshops.
QC12K 10x2500 CNC Shearing Machine for Industrial Cutting
The QC12K 10x2500 CNC Shearing Machine combines hydraulic swing beam cutting, E21S control and servo backgauge positioning in a practical 2500 mm sheet metal shear.
For workshops processing ordinary steel plate within the rated 10 mm capacity, the QC12K 10x2500 CNC Shearing Machine provides a practical solution for straight sheet cutting, blank preparation and repeated production.
The machine also has a specified stainless steel cutting capacity of 5 mm. Buyers should always confirm material strength because different steel grades can require different cutting force even at the same nominal thickness.
The servo backgauge is especially useful when the QC12K 10x2500 CNC Shearing Machine is used for repeated parts with consistent blank sizes. Its 20–800 mm adjustment range allows many common cutting dimensions to be programmed through the machine control.
If your application requires a different cutting thickness or working length, compare other CNC hydraulic shearing machines before selecting the final model.
Explore More Hong Forging Metal Fabrication Machines
Compare shearing, bending, rolling and forming machinery according to sheet thickness, working length and production requirements.
Shearing Machine Safety Reference
Industrial shears contain cutting and point-of-operation hazards that require appropriate guarding, operator training and safe working procedures.
Operators should follow the machine manual, applicable workplace regulations and appropriate machine guarding practices when loading, positioning, cutting or servicing sheet metal shearing equipment.
For independent machine guarding requirements, review the Occupational Safety and Health Administration:
QC12K 10x2500 CNC Shearing Machine FAQ
Common buyer questions about the QC12K-10×2500 CNC hydraulic swing beam shearing machine, cutting capacity, backgauge and machine configuration.
What is the QC12K 10x2500 CNC Shearing Machine?
The QC12K 10x2500 CNC Shearing Machine is a hydraulic swing beam sheet metal cutting machine with a maximum cutting width of 2500 mm and CNC-controlled backgauge.
What is the maximum steel cutting thickness?
The technical specification lists a maximum ordinary steel cutting thickness of 10 mm under the rated material strength conditions.
Can the QC12K-10×2500 cut stainless steel?
The technical specification lists a maximum stainless steel cutting thickness of 5 mm. Actual capability depends on the stainless steel grade and material strength.
What is the cutting width of the machine?
The QC12K-10×2500 has a specified maximum cutting width of 2500 mm.
What is the backgauge range?
The CNC rear backgauge has a specified adjustment range of 20–800 mm.
How is the backgauge driven?
The backgauge uses servo motor drive with synchronous belt, ball screw and guide rail transmission.
What controller does the machine use?
The technical specification identifies an E21S control system for the QC12K-10×2500 shearing machine.
What is the shearing angle?
The specified shearing angle is 1.5 degrees.
What is the cutting frequency?
The technical specification lists a stroke frequency of 16 cutting cycles per minute.
What information should I send for a quotation?
Send your material type, material strength, maximum sheet thickness, maximum width, common cutting dimension, production quantity, workshop voltage and destination country or port.
Where can I compare other shearing machine models?
Visit the Hong Forging Shearing Machine page to compare CNC and hydraulic sheet metal cutting machine solutions.
