QC11Y 8x2500 Hydraulic Guillotine Shear
The QC11Y 8x2500 hydraulic guillotine shear provides an 8 mm nominal cutting capacity, 2500 mm cutting width, adjustable 0.5°–2.5° shear angle, motorized blade-gap control and a 20–600 mm powered rear backgauge. It is engineered for repeatable sheet-metal cutting with hydraulic hold-downs and MD11 numerical control.
Industrial 8 mm Hydraulic Guillotine Shearing Machine
The QC11Y-8×2500 is a hydraulic guillotine shearing machine developed for straight cutting of carbon-steel and other compatible sheet materials. Its welded frame, hydraulic blade-beam movement and powered positioning system support practical production in sheet-metal fabrication workshops.
The adjustable shear angle allows the operator to balance cutting force, sheet deformation and cutting frequency. Motorized blade-clearance adjustment helps match the blade gap to the material thickness and cutting conditions.
The MD11 controller manages rear-backgauge positioning and displays operating information. The reference backgauge travel is 20–600 mm, with positioning accuracy stated as ≤±0.1 mm under the specified operating conditions.
Upper and lower rectangular shear blades provide four usable cutting edges. The blades can be rotated before sharpening or replacement, helping buyers control blade-maintenance costs.
- 8 mm nominal sheet-cutting capacity
- 2500 mm maximum cutting width
- MD11 numerical control system
- Powered rear-backgauge positioning
- Motorized blade-clearance adjustment
- Hydraulic hold-down system
Powerful QC11Y 8x2500 Hydraulic Guillotine Shear Features
The machine combines adjustable cutting geometry, controlled sheet positioning and a heavy welded structure to address accuracy, deformation, blade life and production-efficiency requirements.
Variable Shear Angle
The 0.5°–2.5° adjustable shear angle helps match the cutting action to sheet thickness, cutting force and acceptable material deformation.
Powered Rear Backgauge
A motor-driven 20–600 mm backgauge supports repeated cut-length positioning and reduces dependence on manual measurement.
Motorized Blade Gap
Blade clearance can be adjusted according to material thickness and grade to help control burr, cutting force and premature blade wear.
Four-Edge Shear Blades
Rectangular upper and lower blades provide four usable cutting edges, allowing blade rotation before sharpening or replacement.
Hydraulic Hold-Downs
Hydraulic hold-down cylinders clamp the sheet before cutting to reduce movement and support more consistent cut dimensions.
Rigid Welded Frame
The Q235 welded structure is stress relieved and processed to provide the rigidity needed for long-term industrial sheet cutting.
QC11Y-8×2500 Hydraulic Guillotine Shear Parameters
The following data is based on the supplied QC11Y-8×2500 technical document. Final capacity must be verified using the buyer’s material grade, tensile strength, cutting width and required edge quality.
| Technical Item | Unit | QC11Y-8×2500 |
|---|---|---|
| Machine type | — | Hydraulic guillotine shearing machine |
| Control system | — | MD11 numerical control |
| Nominal cutting thickness | mm | 8 |
| Maximum cutting width | mm | 2500 |
| Blade length | mm | 2600 |
| Adjustable shearing angle | degree | 0.5–2.5 |
| Stroke frequency | min⁻¹ | 9–20 |
| Rear backgauge range | mm | 20–600 |
| Reference backgauge accuracy | mm | ≤±0.1 |
| Main motor power | kW | 11 |
| Gear pump designation | — | 20F |
| Accumulator capacity | L | 8 |
| Blade-gap adjustment | — | Motorized adjustment |
| Shear-angle adjustment | — | Hydraulic/electrical adjustment |
| Blade cutting edges | — | Four usable edges |
| Stroke adjustment | — | Adjustable stroke and sectional cutting |
| Reference power supply | — | 380V / 3-phase / 50Hz |
| Control voltage | — | 220VAC |
| Solenoid-valve voltage | — | 24VDC |
Frame, Backgauge, Worktable and Sheet Positioning Details
Detailed images help buyers assess the machine structure, material-support system, powered backgauge, guarding and positioning components before requesting a quotation.

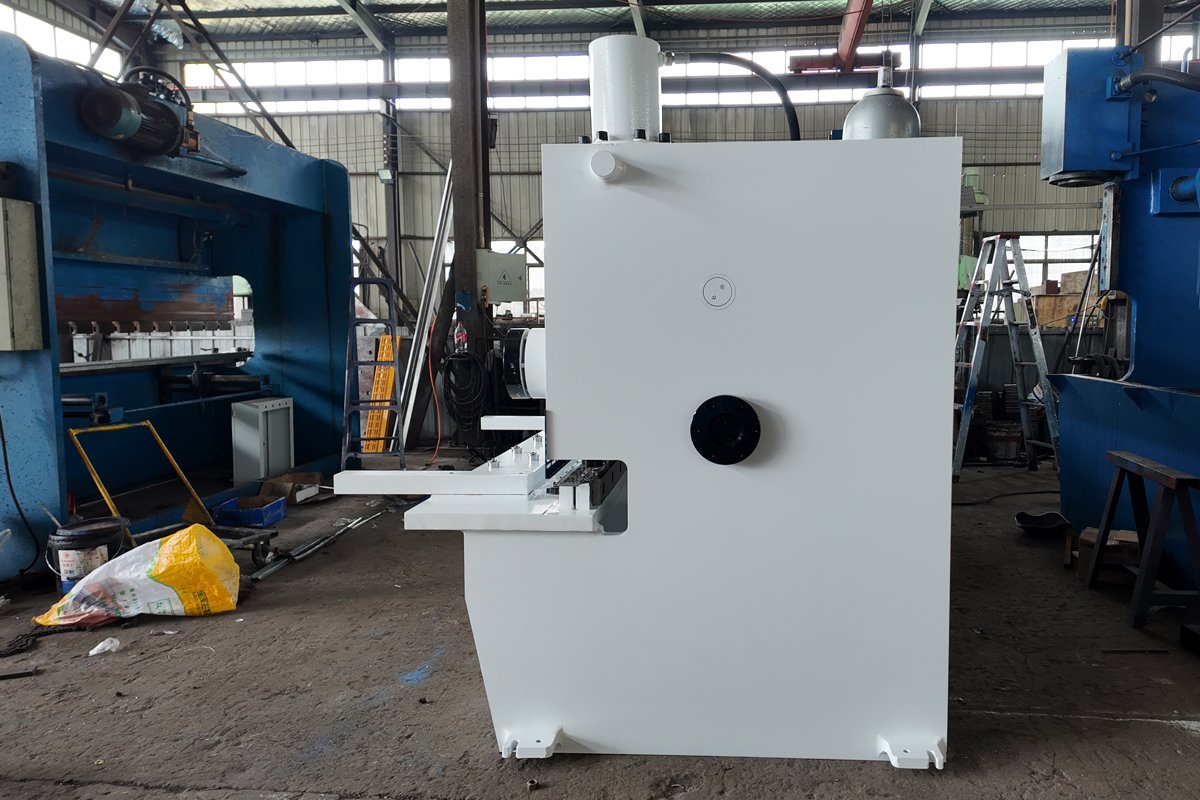

Rigid Side Frame and Electrical Cabinet
Side view of the welded machine frame and integrated cabinet structure used to support stable 2500 mm sheet-metal cutting.

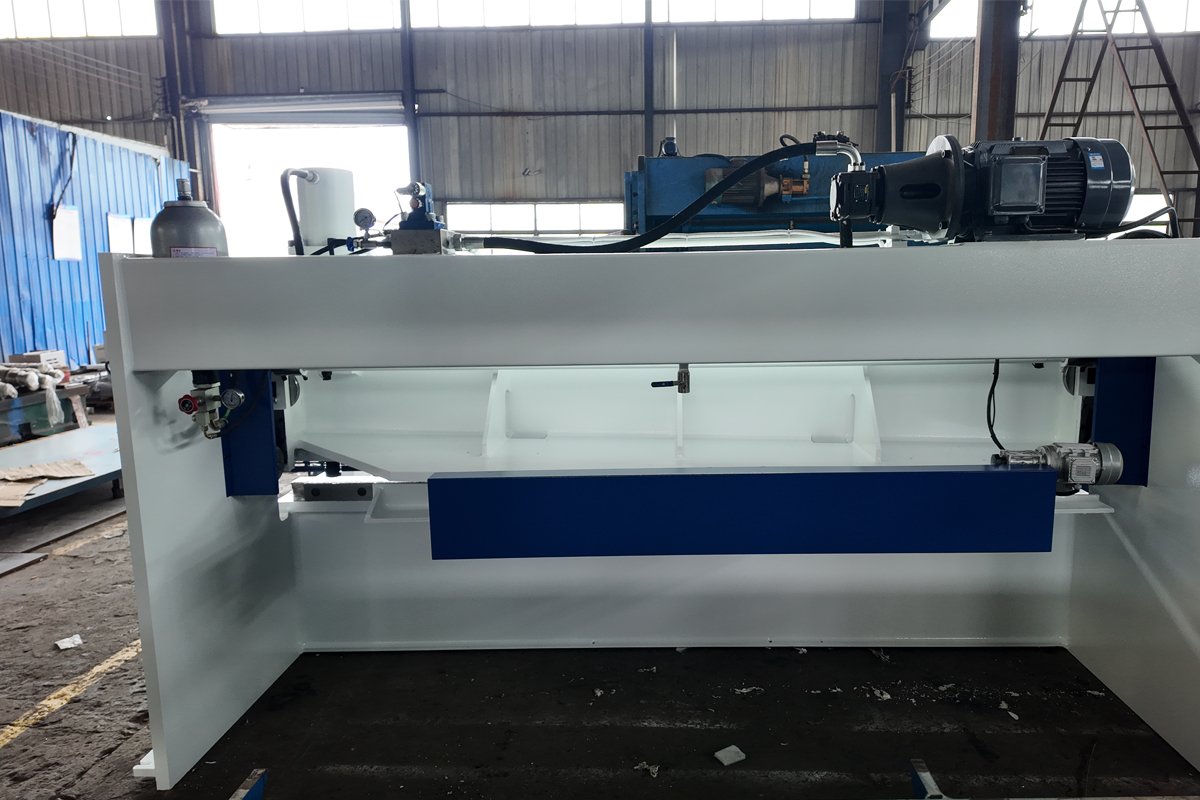

Powered Rear Backgauge
Motor-driven rear backgauge for setting the reference cut length and supporting repeated production of same-size sheet components.

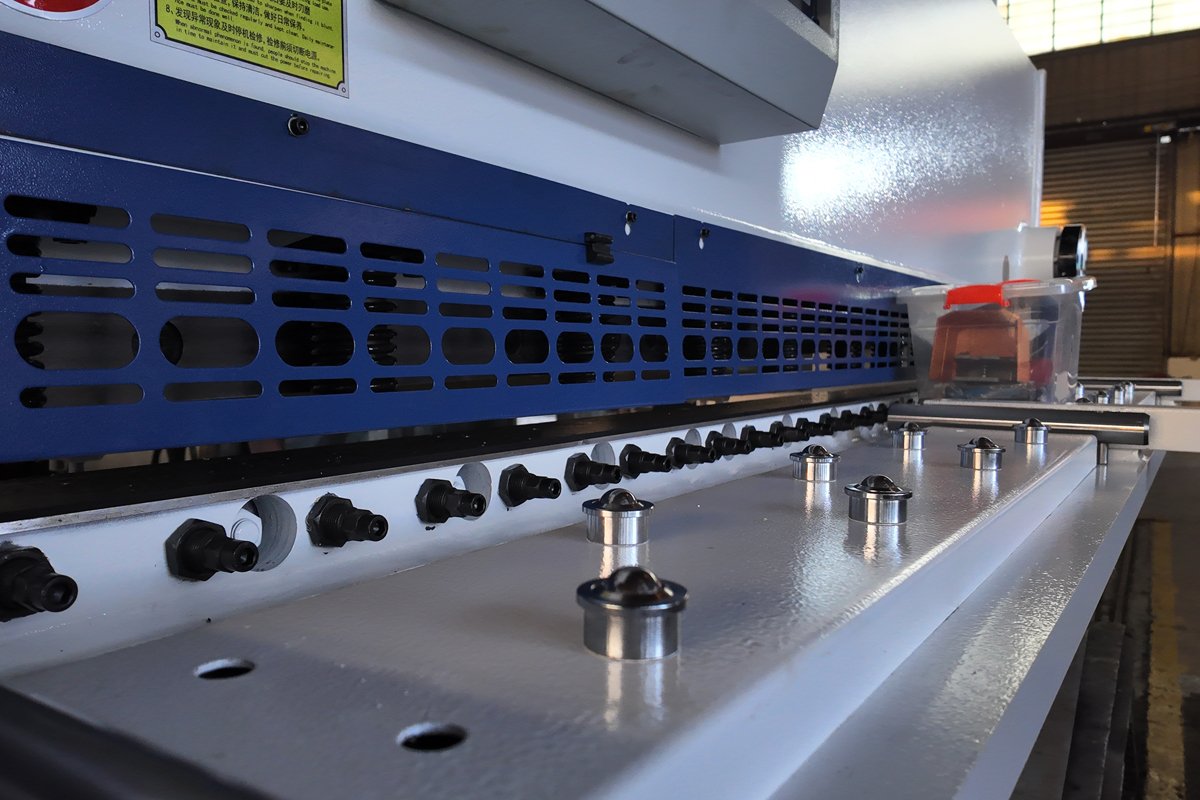

Front Worktable and Guarding
Front worktable, hydraulic hold-down area and protective guard around the cutting zone. Final safety configuration should match destination requirements.

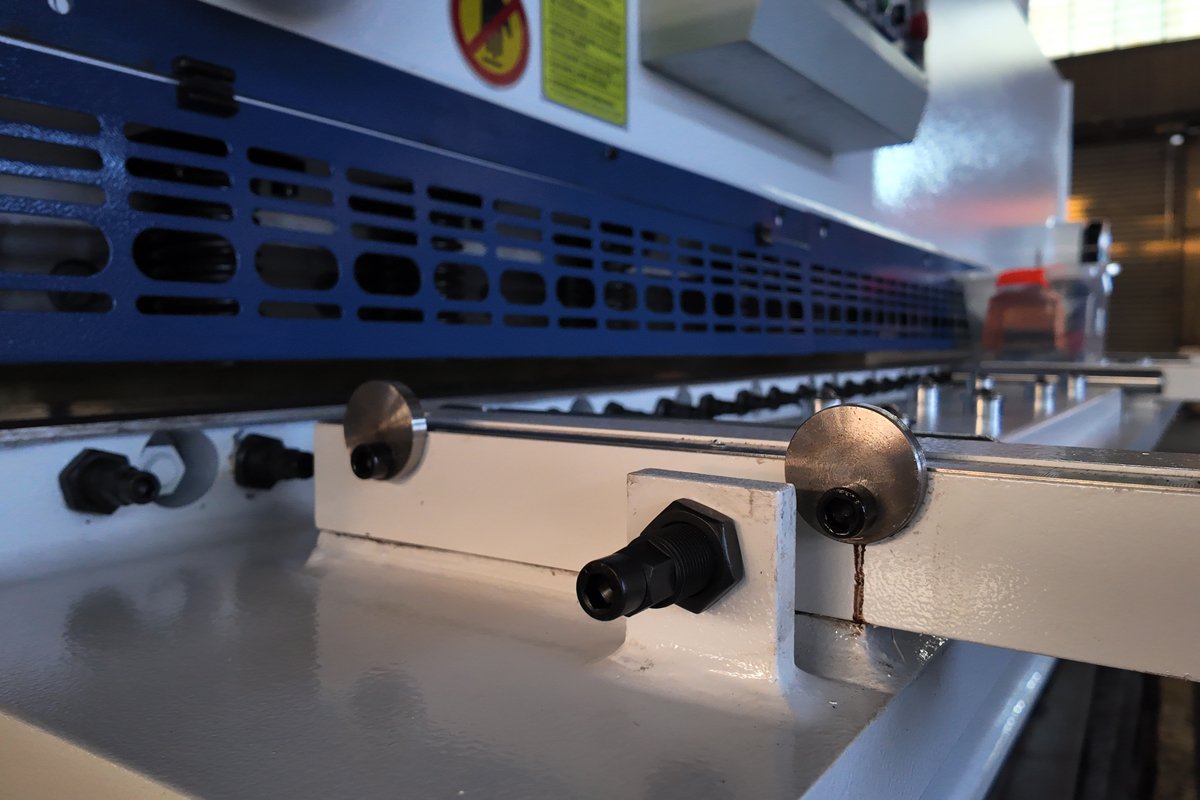

Front Support Positioning Device
Adjustable front support used to hold and position metal sheets before the cutting cycle, especially when handling wider workpieces.

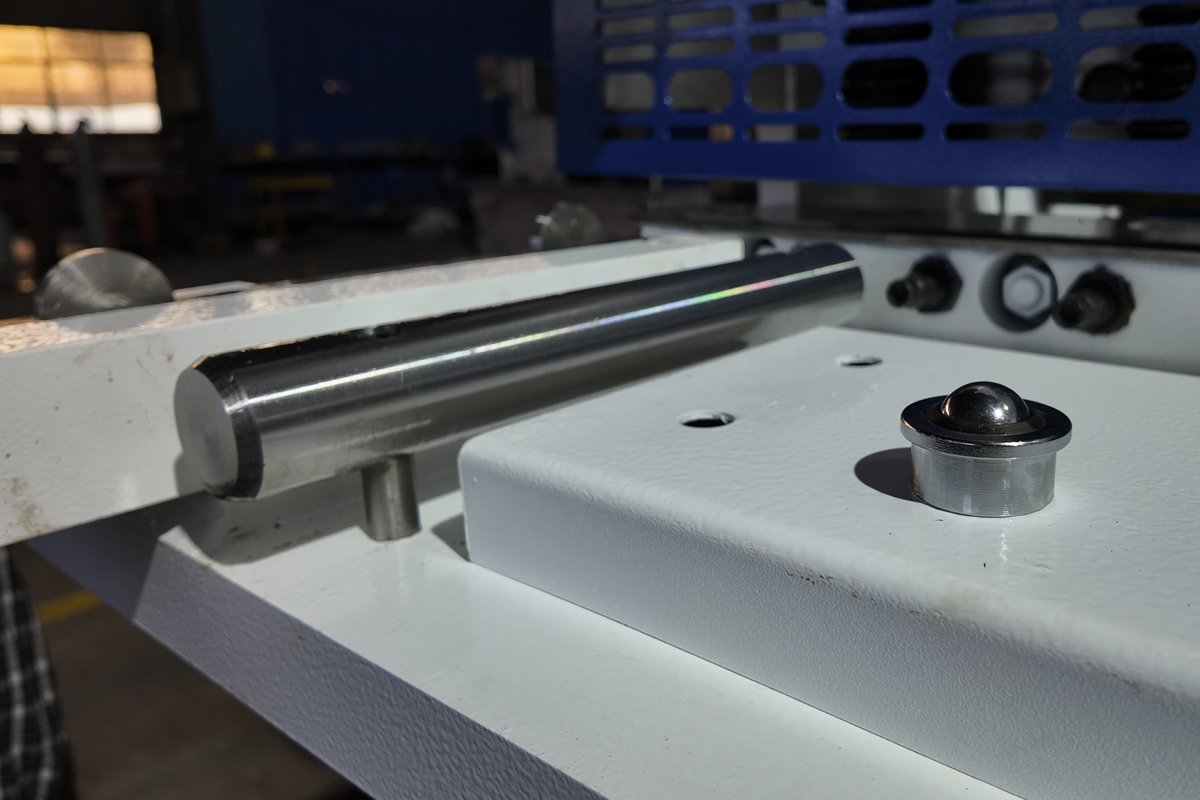

Ball Transfers and Squaring Arm
Ball-transfer supports reduce sheet-feeding resistance, while the measuring squaring arm helps align the sheet before cutting.

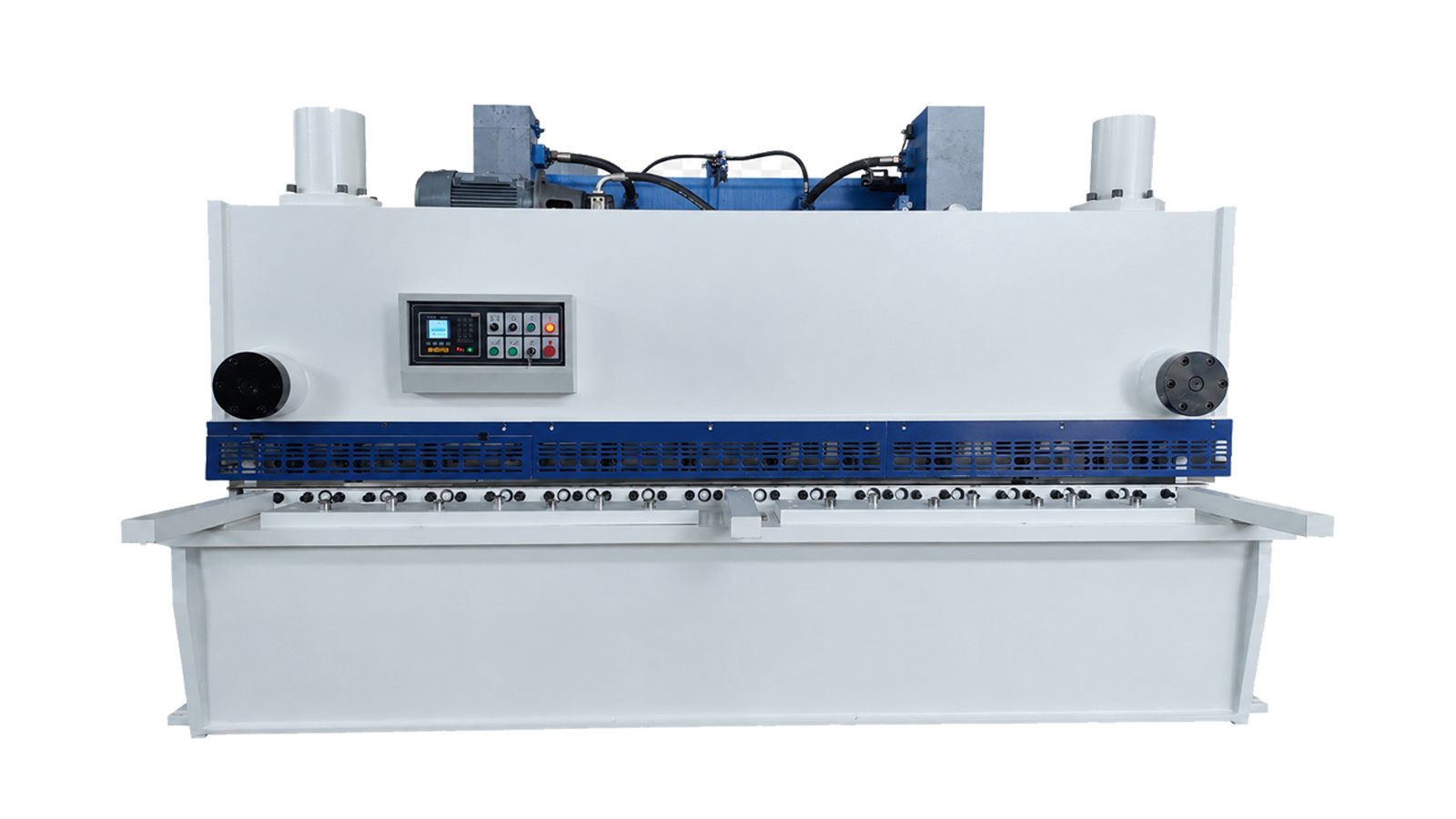

Complete Hydraulic Shearing Machine
Complete front view of the 8 mm × 2500 mm hydraulic guillotine shear for industrial sheet-metal fabrication.
Hydraulic, Electrical and Control Configuration
The reference machine uses an MD11 numerical controller and a motorized rear backgauge. The operator can enter positioning data and monitor the cut-length setting through the control interface.
The hydraulic system drives blade-beam movement and material hold-downs. A three-point rolling guide supports stable movement of the blade beam during repeated cutting cycles.
Reference electrical components include Siemens or Schneider devices. The supplied configuration also lists a DICHENG main motor, Shanghai Yongmin hydraulic valve block and Zilin main cylinders.
- MD11 numerical control system
- DICHENG reference main motor
- Shanghai Yongmin hydraulic valve block
- Siemens/Schneider reference electrical components
- Zilin reference hydraulic cylinders
- High-pressure hydraulic hoses
How the QC11Y Shear Addresses Common Cutting Problems
Buyers searching for a hydraulic guillotine shear commonly evaluate cut repeatability, material movement, edge quality, blade life, safety and the accuracy of rated capacity.
Inconsistent Cut Length
The powered backgauge and MD11 controller support repeated positioning. First-piece measurement and regular backgauge calibration remain necessary.
Sheet Movement During Cutting
Hydraulic hold-down cylinders clamp the workpiece before shearing, while the front support and squaring arm help maintain sheet alignment.
Burr or Distorted Cut Edge
Adjustable blade clearance and variable shear angle help match the cutting geometry to sheet thickness, material strength and acceptable deformation.
Premature Blade Wear
Four usable blade edges extend service intervals. Correct gap selection, lubrication and timely blade rotation are still required.
Difficult Sheet Feeding
Front supports and ball transfers reduce feeding resistance and make it easier to handle wide sheet-metal workpieces.
Unclear Cutting-Capacity Claims
Capacity should be checked against material grade, tensile strength, actual width and required cut quality—not only the nominal 8 mm model rating.
Sheet Metal Cutting Applications for the 8mm Shearing Machine
The QC11Y 8x2500 hydraulic guillotine shear is recommended for straight cutting of compatible metal sheets used in electrical cabinets, HVAC equipment, machinery guards, general fabrication and other industrial projects. Material strength and full-width capacity must be confirmed before model selection.
Electrical Cabinets
Cutting sheet blanks for electrical enclosures, control cabinets and distribution boxes.
HVAC Fabrication
Straight cutting of compatible sheet materials for ducts, housings and ventilation components.
Metal Furniture
Preparing sheet blanks for cabinets, shelving, lockers and fabricated metal furniture.
General Fabrication
Daily sheet-cutting work for fabrication shops and contract metal-processing companies.
Machinery Guards
Producing sheet blanks for machine covers, guards and industrial equipment housings.
Kitchen Equipment
Cutting compatible stainless or carbon-steel sheets after material-specific capacity verification.
Automotive Components
Preparing straight sheet blanks for non-complex vehicle panels, brackets and supporting components.
Steel Structures
Cutting compatible plate and sheet blanks used in light structural fabrication projects.
How to Select a Hydraulic Guillotine Shear
A reliable machine recommendation requires more than nominal thickness and cutting length. Send complete workpiece and production information before confirming the model.
- Sheet material and exact material grade
- Material tensile or yield strength
- Maximum and minimum sheet thickness
- Maximum cutting width
- Required cut-length range
- Cut-length tolerance requirement
- Required edge quality and acceptable burr
- Daily cutting quantity and work schedule
- Maximum sheet size and approximate weight
- Destination voltage and frequency
- Required rear safety protection
- Destination-country compliance requirements
Compare Sheet Metal Cutting and Forming Solutions
Explore related machinery and review factory capability, quality-control procedures and safety guidance before confirming your equipment configuration.
For machine updates and application videos, follow Hong Forging Machinery on Facebook .
QC11Y 8x2500 Hydraulic Guillotine Shear FAQ
Buyer questions about cutting capacity, backgauge positioning, blade clearance, stainless steel, safety and machine selection.
What can the QC11Y-8×2500 hydraulic shear cut?
Can the machine cut 8 mm stainless steel?
What is the rear-backgauge range?
How accurate is the backgauge?
How is blade clearance adjusted?
Why does the machine use an adjustable shear angle?
How many cutting edges do the blades have?
Can the machine perform sectional cutting?
What safety protection is included?
What information is required for a quotation?
Need an 8 mm × 2500 mm Hydraulic Guillotine Shear?
Send your sheet material, tensile strength, thickness, maximum cutting width, cut-length range, tolerance and destination. Our team will verify the actual cutting capacity and prepare a technical proposal for your project.
