WE67K 170T 2500 CNC Hydraulic Press Brake
The WE67K 170T 2500 CNC Hydraulic Press Brake combines 170-ton nominal bending capacity with a 2500 mm working length for professional sheet metal bending, machinery components and industrial metal fabrication.
High-Capacity 170 Ton CNC Press Brake for Industrial Bending
The WE67K 170T 2500 CNC Hydraulic Press Brake is designed for professional metal fabrication businesses requiring substantial bending force combined with a compact and practical 2500 mm working length.
Its nominal 170-ton bending capacity and 2500 mm working length make this model suitable for machinery parts, fabricated panels, structural components, metal enclosures and other industrial bending applications.
CNC controller, backgauge, tooling, voltage and optional equipment can be selected according to material type, plate thickness, workpiece geometry, bending length and production requirements.
Why Choose the WE67K 170T/2500 CNC Hydraulic Press Brake?
A practical heavy-duty CNC bending solution for customers requiring 170-ton capacity with a 2500 mm working area.
170 Ton Bending Capacity
Nominal 170-ton bending capacity supports demanding sheet metal and plate bending applications requiring more force than common light-duty machines.
2500 mm Working Length
A 2500 mm working area is practical for medium-length machinery parts, panels and custom fabricated components.
CNC Hydraulic Operation
CNC-controlled hydraulic operation supports programmable bending processes and repeated sheet metal production.
Dual Hydraulic Cylinder Layout
The machine uses a dual-side hydraulic cylinder layout as shown in the detailed machine images.
Workpiece-Based Tooling
Upper and lower tooling can be selected according to material, thickness, bend angle, radius and part geometry.
Flexible Configuration
CNC functions, backgauge, tooling and electrical configuration can be discussed according to production needs.
WE67K 170T/2500 CNC Press Brake Specifications
The following information describes the principal specifications confirmed by the WE67K-170T/2500 model.
Detailed controller, backgauge axes, throat depth, opening height, motor power and component brands should be confirmed with the final technical quotation.
| Item | Specification |
|---|---|
| Model | WE67K-170T/2500 |
| Machine Type | CNC Hydraulic Press Brake |
| Nominal Bending Capacity | 170 Ton |
| Working Length | 2500 mm |
| Press Brake Series | WE67K |
| CNC Controller | Confirmed according to final configuration |
| Backgauge | Selected according to bending requirements |
| Bending Tooling | Selected according to customer workpiece |
| Hydraulic Configuration | Confirmed with final technical specification |
| Electrical Specification | Configured according to destination requirements |
| Application | Industrial sheet metal and plate bending |
WE67K 170T/2500 CNC Press Brake Structure and Details
Review the CNC controller, hydraulic cylinder area and machine structure before selecting the final machine configuration.
Dual Hydraulic Cylinder Structure
Machine Structure Detail
CNC Control for Repeatable Sheet Metal Bending
CNC operation helps manage bending programs and machine positioning for repeated industrial sheet metal production.
Production Programming
CNC operation supports stored bending programs for recurring workpieces and repeated production tasks.
Backgauge Configuration
Backgauge requirements can be selected according to flange dimensions, part geometry and bend sequence.
Operator Workflow
Suitable CNC configuration can simplify setup and improve workflow for daily bending production.
Final Controller Selection
Exact controller model and controlled axes are confirmed before ordering according to production requirements.
Press Brake Tooling Selected for Your Workpieces
Press brake tooling directly affects bending capability, bend radius and finished-part geometry. Tooling should be selected according to material, plate thickness, bend angle, required radius and workpiece design.
2500 mm Working Length for Industrial Metal Parts
The 2500 mm nominal working length provides a practical bending area for machinery components, fabricated panels, brackets, enclosures and other medium-length industrial parts.
Actual bending capacity depends on material tensile strength, plate thickness, bending length, tooling and die opening. Machine selection should therefore use actual workpiece data.
How to Choose a 170 Ton CNC Press Brake
Machine selection should be based on real workpiece requirements instead of tonnage alone.
Material Type
Carbon steel, stainless steel and aluminum have different strength characteristics and bending-force requirements.
Plate Thickness
Provide maximum production thickness so machine selection covers the most demanding workpiece.
Bending Length
Required tonnage changes according to the length being bent simultaneously.
Part Drawing
Drawings help evaluate bend sequence, flange dimensions, tooling and backgauge requirements.
Production Volume
Production quantity helps determine CNC, backgauge and automation requirements.
Voltage & Destination
Provide workshop voltage, frequency and destination country before final electrical configuration.
WE67K 170T/2500 CNC Hydraulic Press Brake Gallery
View the main machine, CNC controller, hydraulic structure, machine detail, bending tooling and working area.

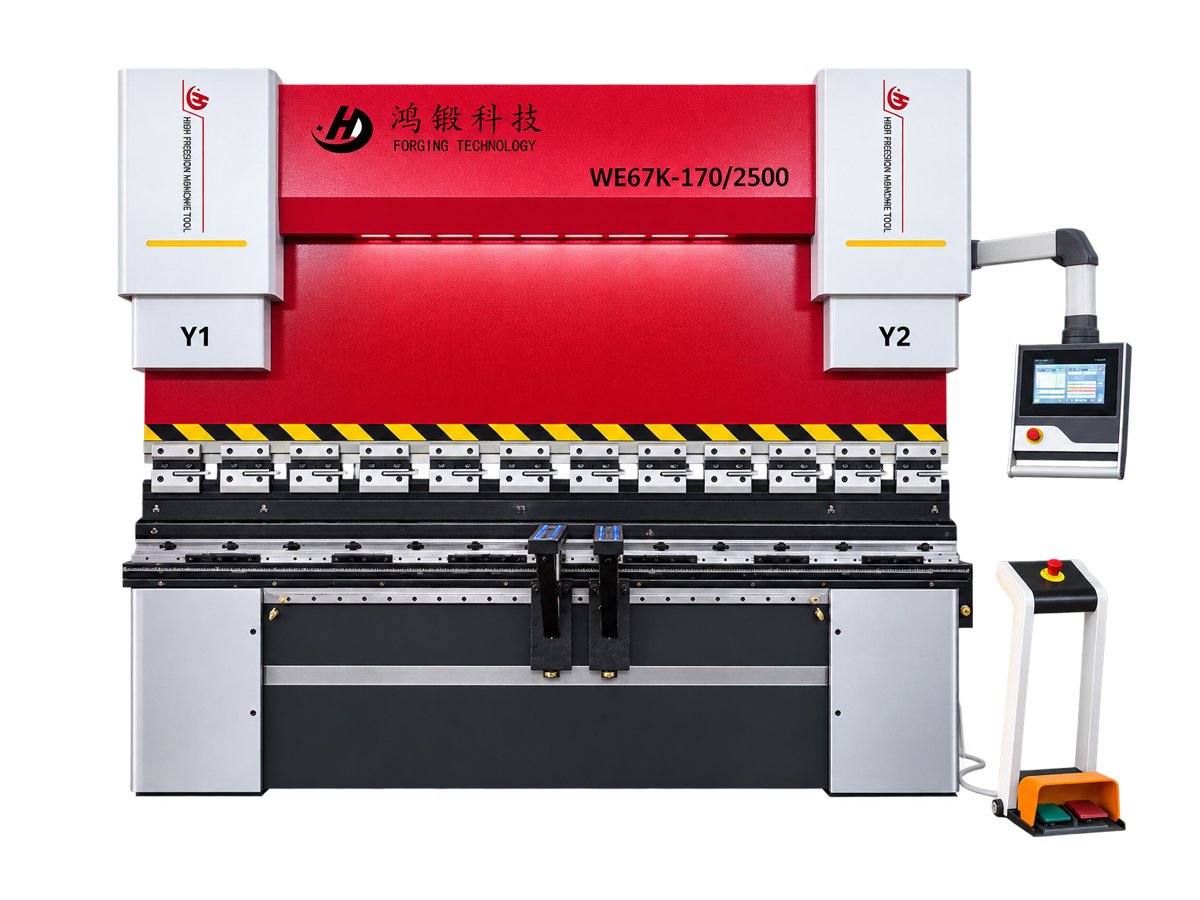

Main Machine
Complete WE67K 170T/2500 CNC hydraulic press brake.

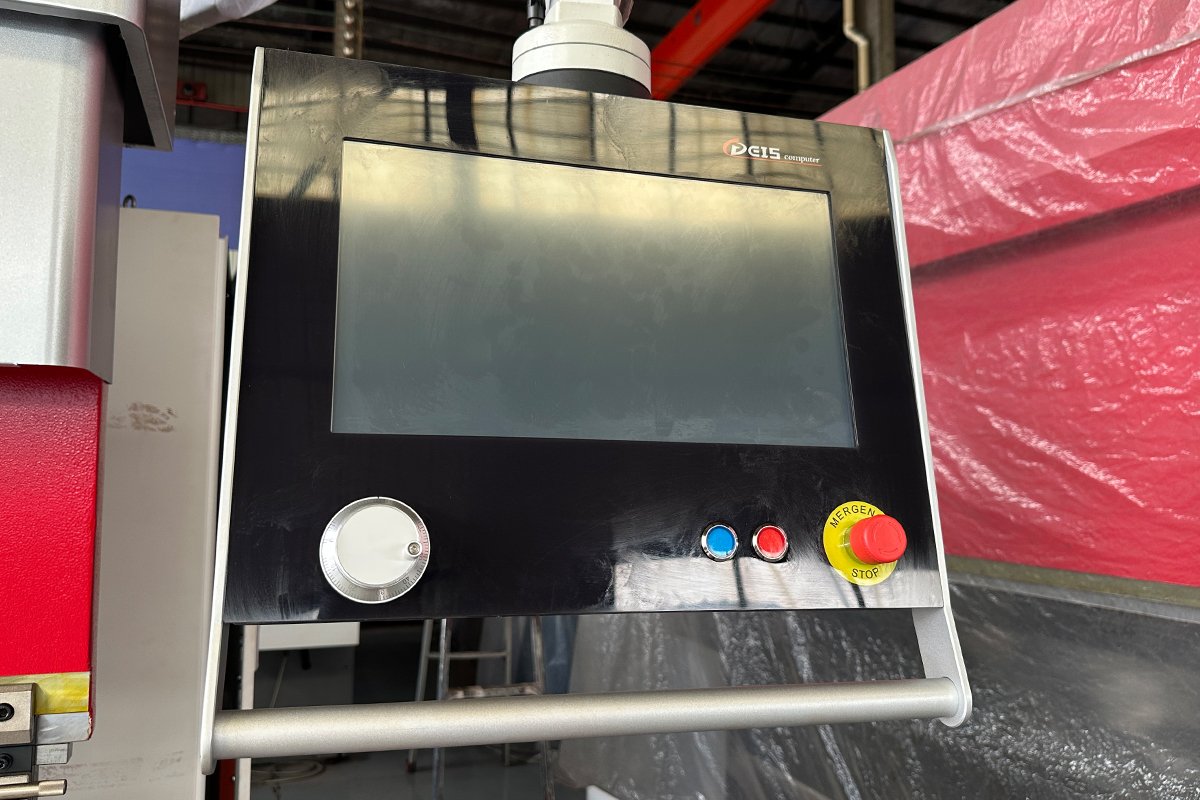

CNC Controller
CNC operator panel for machine programming and operation.

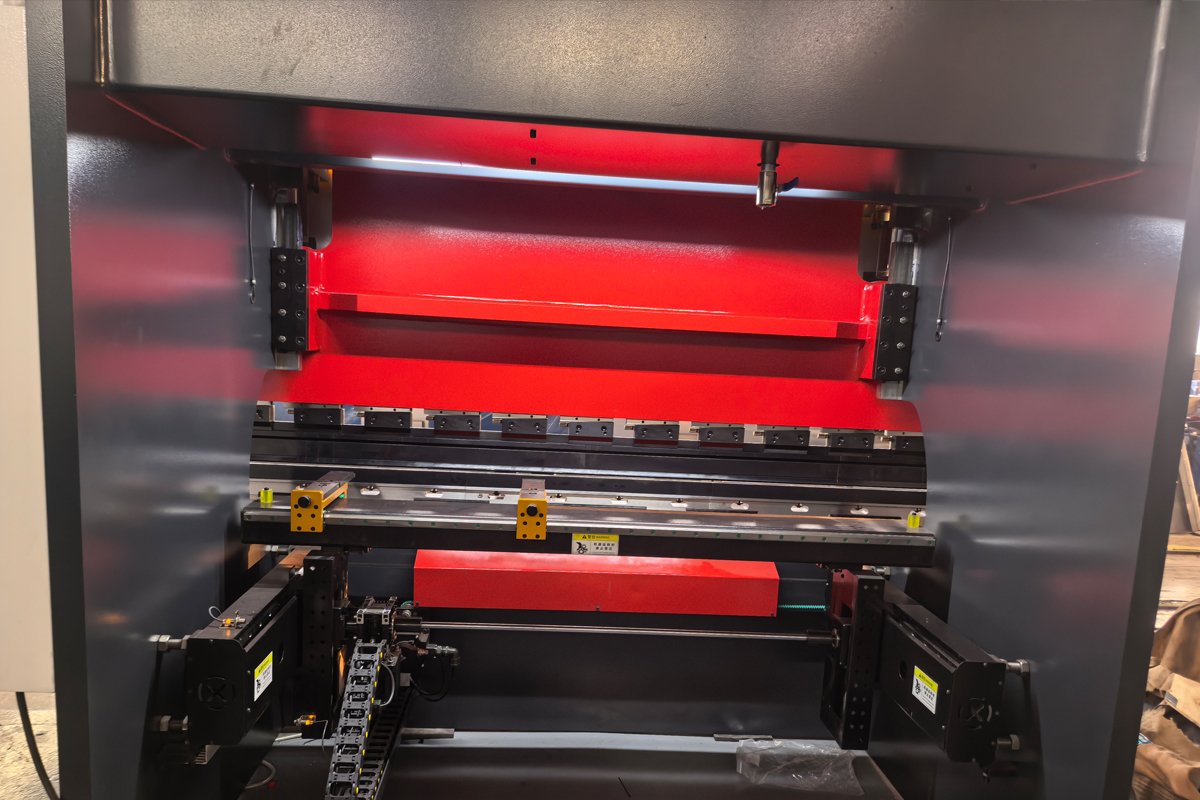

Hydraulic Cylinder
Detailed view of the dual-side hydraulic cylinder area.

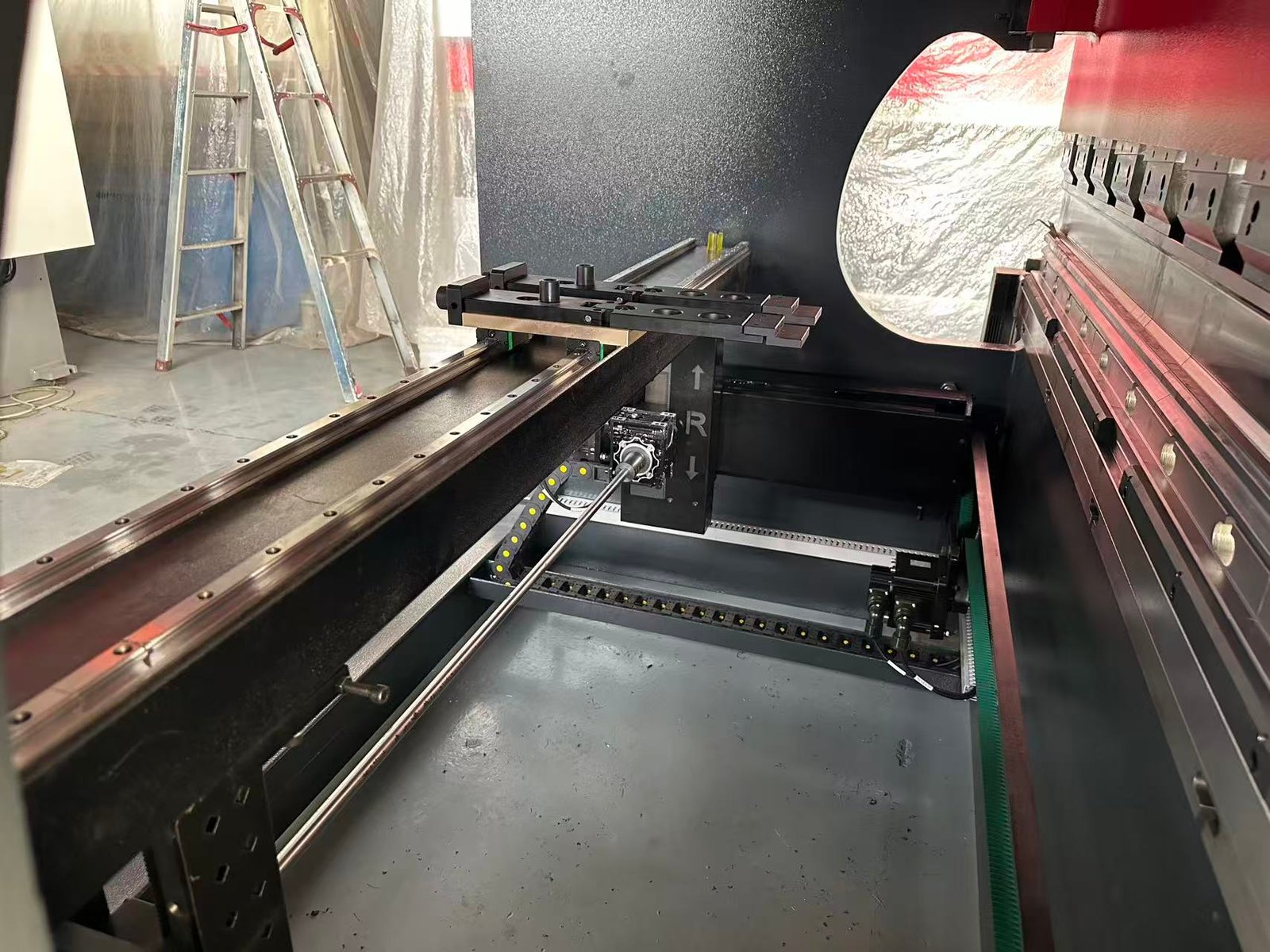

Machine Detail
Close-up machine structure and component view.

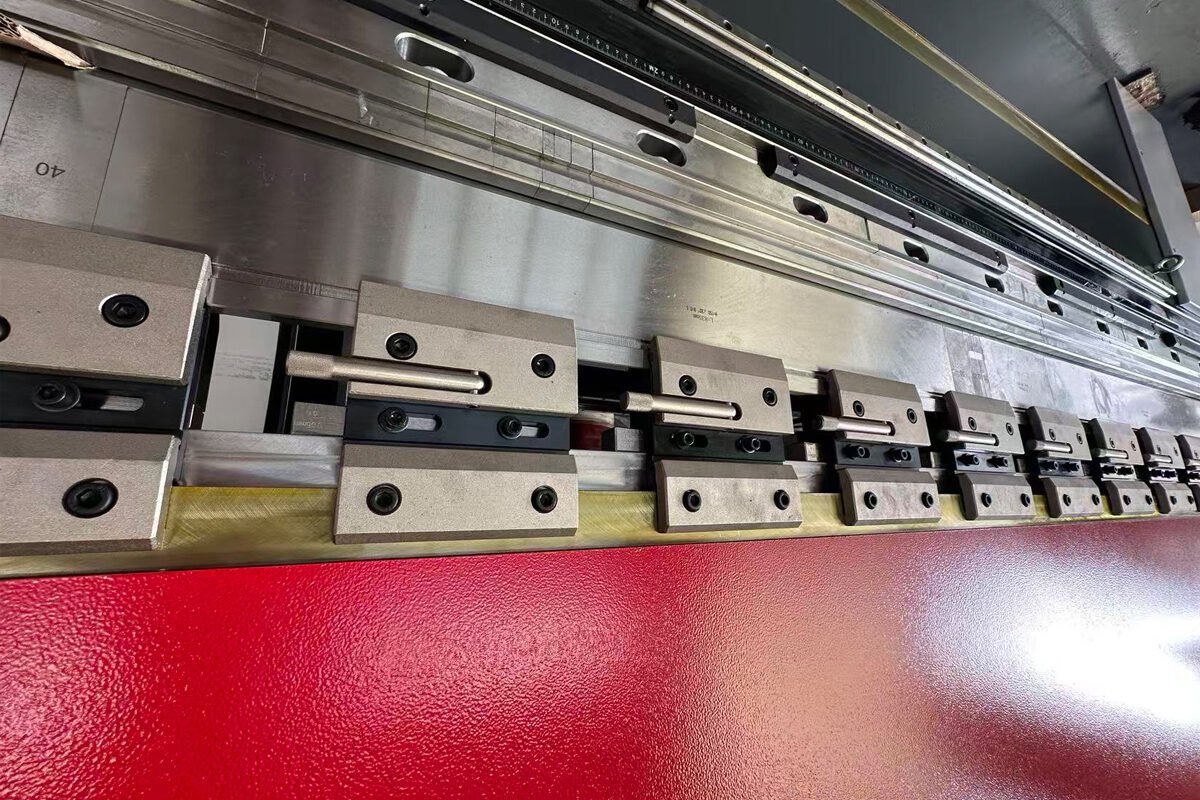

Bending Tooling
Upper and lower bending tool area used for metal forming.

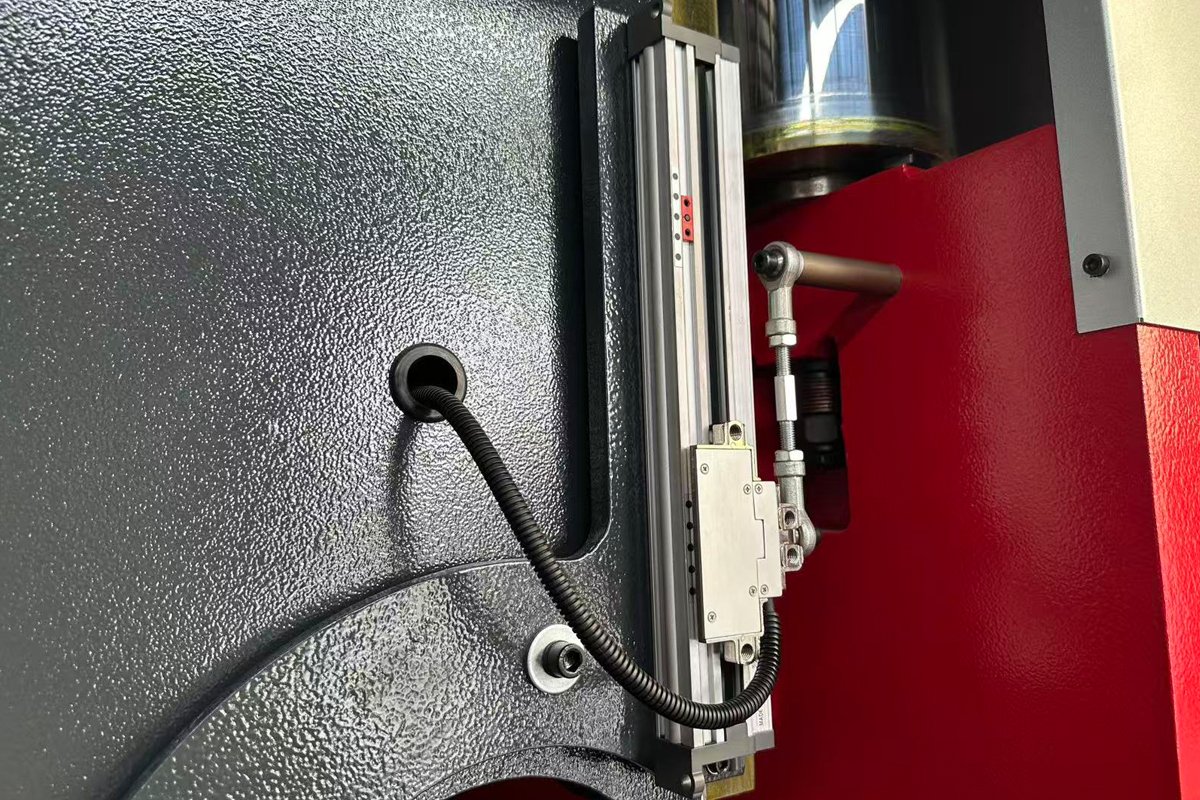

Working Area
Detailed sheet metal bending and tooling working area.
Applications of the WE67K 170 Ton CNC Press Brake
Suitable machine configuration can support a range of professional sheet metal and industrial bending applications.
Sheet Metal Fabrication
Professional bending of custom sheet metal parts and fabricated components.
Machinery Components
Suitable for machinery panels, brackets, covers and fabricated machine parts.
Industrial Panels
2500 mm working length supports production of medium-length fabricated panels.
Metal Enclosures
Machine and tooling configuration can be selected for boxes, cabinets and enclosure components.
Stainless Steel Processing
Stainless steel bending can be evaluated according to grade, thickness, length and tooling.
Custom Metal Production
Suitable configuration can be discussed from customer workpiece drawings.
Explore More Hong Forging Machinery
Compare additional bending, cutting and metal forming equipment for different fabrication applications.
Press Brake Safety Reference
Industrial press brakes should be operated with appropriate machine guarding, trained personnel and safe operating procedures.
Powered press brakes can create hazards around the point of operation, tooling and material handling areas.
For independent machine-guarding information, review:
WE67K 170T/2500 CNC Hydraulic Press Brake FAQ
Common buyer questions about the WE67K 170T 2500 CNC Hydraulic Press Brake.
What is the WE67K 170T 2500 CNC Hydraulic Press Brake?
The WE67K 170T 2500 CNC Hydraulic Press Brake is an industrial sheet metal bending machine with a nominal 170-ton bending capacity and 2500 mm working length.
What does 170T/2500 mean?
170T refers to the nominal 170-ton bending capacity, while 2500 refers to the nominal 2500 mm working length.
What is a 170 ton CNC press brake used for?
It can be considered for machinery parts, fabricated panels, brackets, enclosures and other industrial sheet metal or plate bending applications.
What is the working length of the WE67K 170T/2500?
The machine has a nominal working length of 2500 mm.
Can the machine bend stainless steel?
Stainless steel and other formable metals can be evaluated according to material strength, plate thickness, bending length, die opening and tooling.
How do I know if 170 tons is enough?
Required bending force depends on material type, tensile strength, thickness, bending length, die opening and bending method. Send your workpiece information for evaluation.
What CNC controller does this press brake use?
The final CNC controller and controlled axes should be confirmed according to the ordered machine configuration and production requirements.
Can press brake tooling be customized?
Tooling can be selected according to material, thickness, bend angle, radius and workpiece geometry.
What information is required for a quotation?
Please provide material type, maximum thickness, maximum bending length, workpiece drawing, workshop voltage, destination country or port and any special CNC or tooling requirements.
Where can I compare other press brake models?
Visit the Hong Forging Press Brake Machines page to compare additional CNC hydraulic bending machines.
Need a WE67K 170T/2500 CNC Hydraulic Press Brake?
Send your material type, maximum plate thickness, bending length, workpiece drawing, voltage and destination country. Hong Forging Machinery will help confirm a suitable WE67K 170T 2500 CNC Hydraulic Press Brake configuration.
